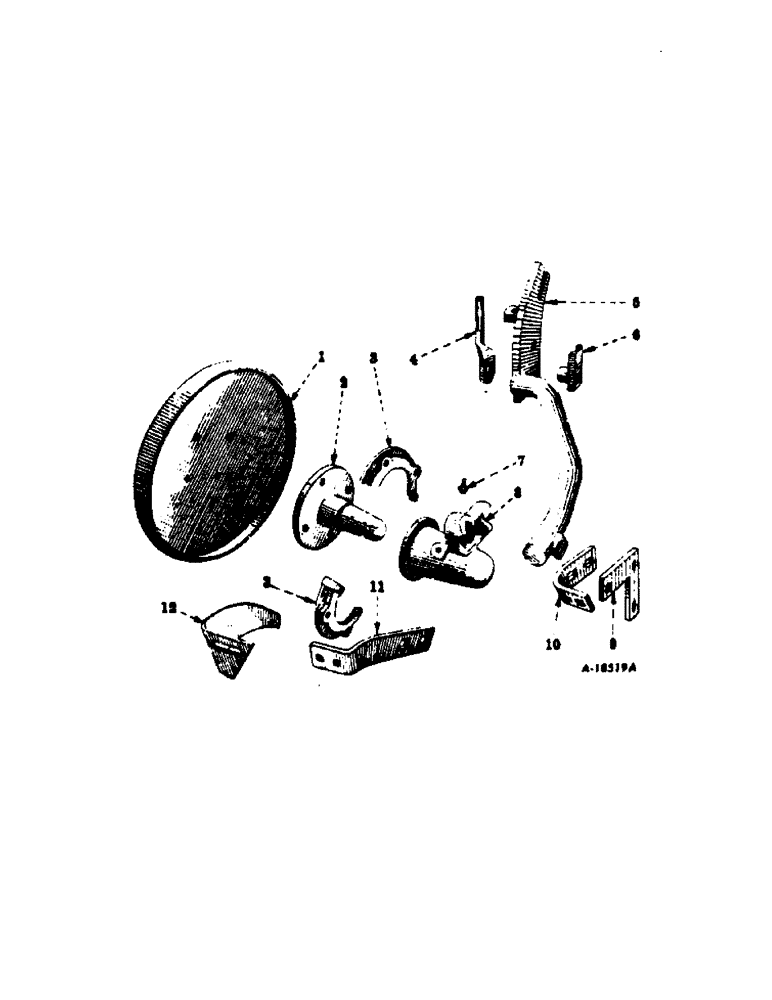

Запчасти Case IH F11 (A-4[A]) - REAR FURROW WHEEL ATTACHMENT, ONE PER FURROW

1

PO23448

WHEEL

1шт.

7/16 x 1-7/8 NO. 3 PLOW BOLT

4шт.

7/16 LOCK WASHER

4шт.

2

PO2693

HUB

1шт.

3

PO2692

WASHER, retaining

2шт.

4

PO27277X

BOLT w/nut, adjusting

1шт.

102639

NUT,5/8"-11, G5

1шт.

5

513603R91

AXLE ASSY, LH

1шт.

5

513604R91

AXLE ASSY, RH

1шт.

5/8 x 3 MACH BOLT

2шт.

5/8 x 3-1/2 MACH BOLT

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21/32 x 1-1/2 x 11 GA WASHER

4шт.

6

PO3068

SPACER, adjusting bolt

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

PO2694A

BEARING

1шт.

9

513611R91

BRACKET, scraper left lower

1шт.

1/2 x 3-1/2 CRG BOLT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

513609R1

BRACKET, scraper upper LH

1шт.

3/8 x 1 CRG BOLT

2шт.

Q1505

WASHER

.406 x 1.000 x .056 pln

2шт.

11

PO23454

BRACKET, scraper RH

1шт.

1/2 x 3-1/2 CRG BOLT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

513607R1

SCRAPER, LH

1шт.

12

PO23453

SCRAPER, RH

1шт.

3/8 x 1 CRG BOLT

4шт.

Q1505

WASHER

.406 x 1.000 x .056 pln

4шт.
