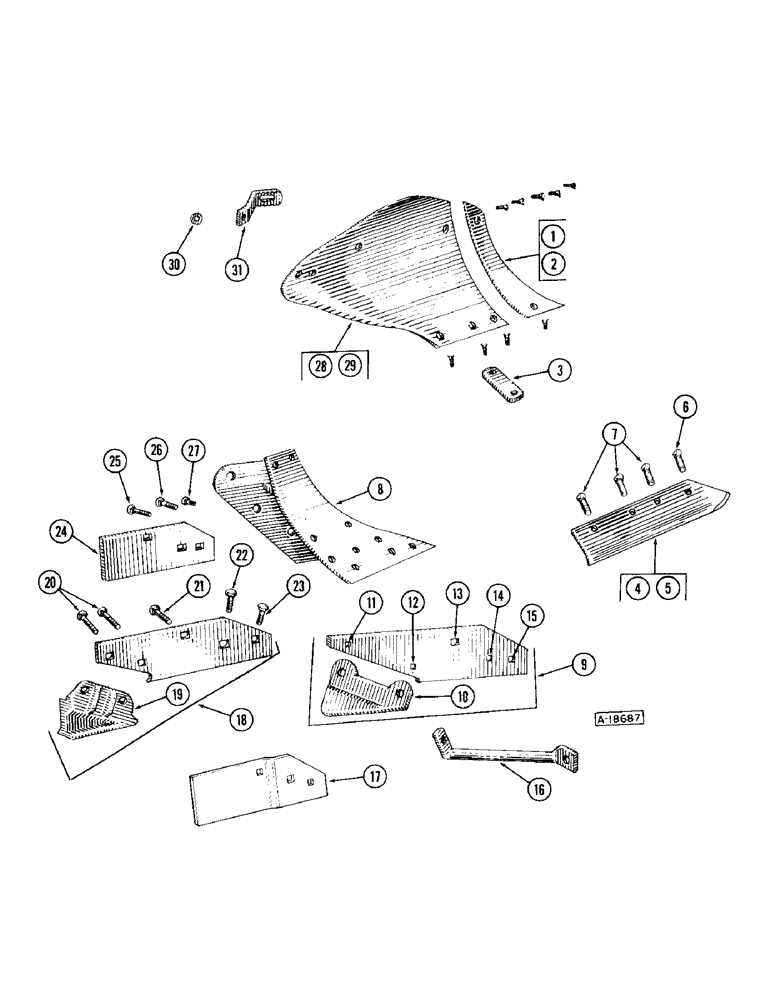

Запчасти Case IH CASE (08) - EXB14, EXB16, PER BOTTOM, 14 INCH AND 16 INCH

1

T60002

SHIN

PIECE - moldboard (Per Btm. 14")

1шт.

2

T60003

SHIN

PIECE - moldboard (Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

3

T19441

STRAP

- moldboard

1шт.

195-2032

WASHER - 1" x 7/16" x 16 ga

1шт.

4

T62884

SHARE

- 14" curved steel forged tip, w/bolts (Per Btm. 14")

1шт.

T39134

SHARE

- less bolts (Per Btm. 14")

1шт.

6

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

7

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

3шт.

4

T39136

SHARE

- 14" curved steel, forged tip, clipped, less bolts (Per Btm. 14")

1шт.

5

T62886

SHARE

- 16" curved steel, forged tip, w/bolts (Per Btm. 16")

1шт.

T39135

EDGE

SHARE - less bolts (Per Btm. 16")

1шт.

6

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 16")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

7

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

3шт.

8

T38395

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

9

T62013

LANDSIDE

- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)

1шт.

10

WA887

HEEL

PLATE

1шт.

11

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

12

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

13

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

14

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

15

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

16

T11757

BRACE - landside to moldboard (Rear btm. only)

1шт.

17

T38346

LANDSIDE

- 4" x 1/2" x 14-1/2" (T87663)

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

O2167TS

SPACER (Not shown)

1шт.
