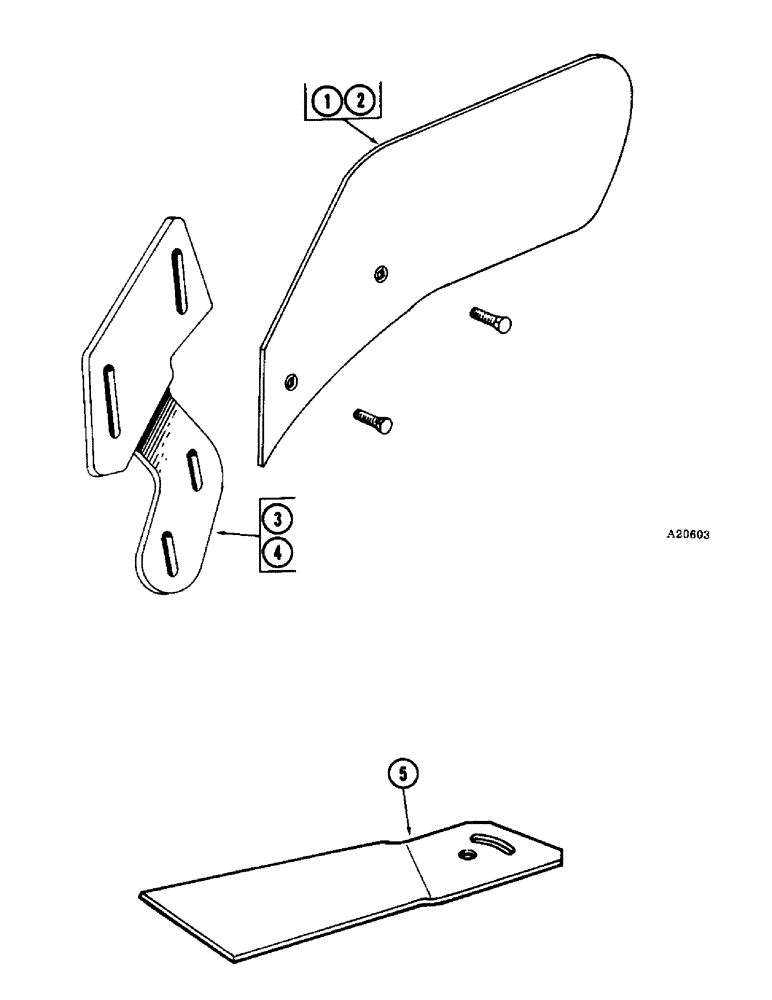

Запчасти Case IH CASE (64) - TRASHBOARD

1

T62491

BOARD

BLADE - trashboard, R.H.

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

2шт.

2

T62492

BOARD

BLADE - trashboard, L.H.

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

2шт.

3

T1878

SUPPORT

- trashboard, R.H.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

4

T1879

SUPPORT - trashboard, L.H.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

5

T62846

EXTENSION

- moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.
