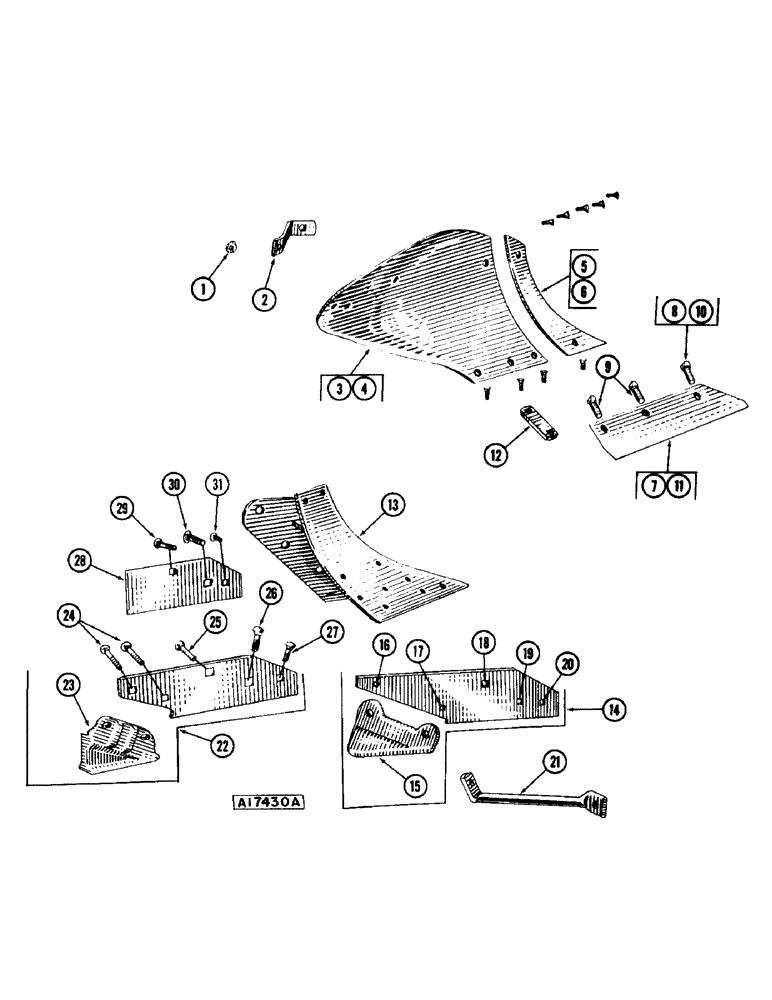

Запчасти Case IH CASE (56) - EXR14, EXR16, PER BOTTOM, 14 INCHES AND 16 INCHES

1

W10579S

WASHER - serrated

1шт.

2

T18018

BRACE

- moldboard

1шт.

3

EX14

MOLDBOARD

(Per Btm. 14")

1шт.

4

EX16

MOLDBOARD

(Per Btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

3шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

4шт.

195-2032

WASHER - 1" x 7/16" x 16 ga

1шт.

5

T60822

SHIN

PIECE - moldboard (Per Btm. 14")

1шт.

6

T60818

SHIN

PIECE - moldboard (Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

7

T62883

SHARE

- 14" curved steel w/bolts (Per Btm. 14")

1шт.

T39127

SHARE

- less bolts (Per Btm. 14")

1шт.

8

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

9

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

2шт.

7

T62884

SHARE

- 14" curved steel, forged tip w/bolts (Per Btm. 14")

1шт.

T39134

SHARE

- less bolts (Per Btm. 14")

1шт.

9

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

3шт.

10

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

7

T39131

SHARE

- 14" curved steel, clipped less bolts (Per Btm. 14")

1шт.

7

T39136

SHARE

- 14" curved steel, forged tip, clipped less bolts (Per Btm. 14"0

1шт.

11

T62885

SHARE

- 16" curved steel w/bolts (Per Btm. 16")

1шт.

T39128

SHARE

- less bolts (Per Btm. 16")

1шт.

8

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

9

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.

11

T62886

SHARE

- 16" curved steel, forged tip w/bolts (Per Btm. 16")

1шт.

T39135

EDGE

SHARE - less bolts (Per Btm. 16")

1шт.

9

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

3шт.

10

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 16")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

12

T19441

STRAP

- moldboard

1шт.

13

T38395

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.
