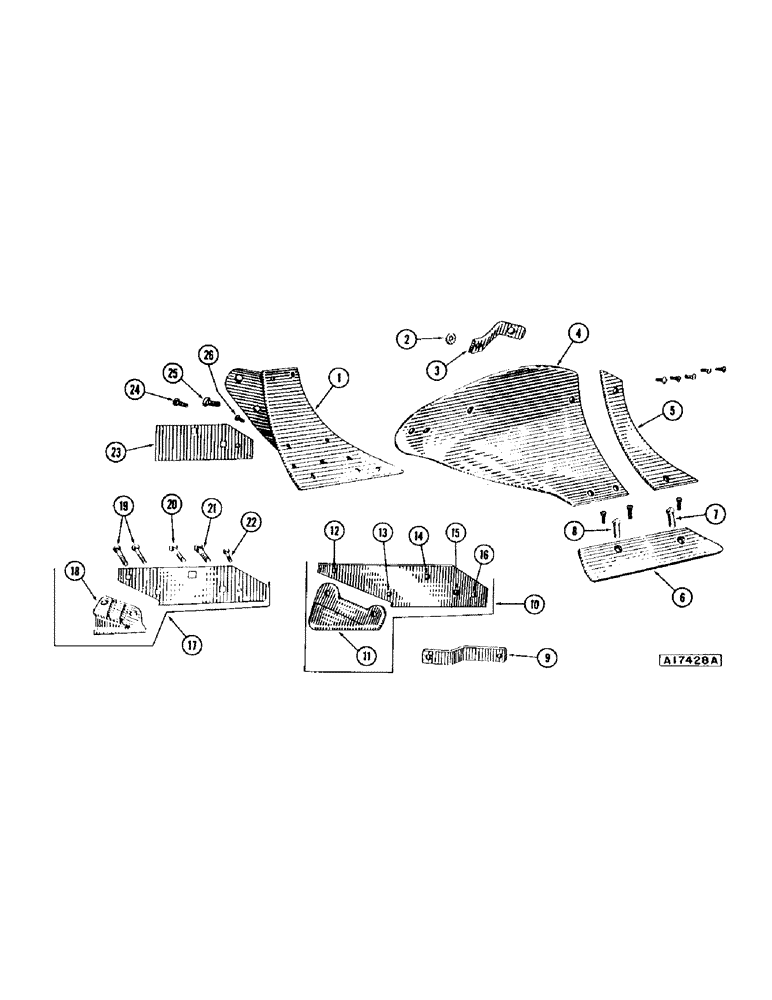

Запчасти Case IH CASE (54) - EXR12, PER BOTTOM

1

T38395

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

2

W10579S

WASHER - serrated

1шт.

3

T18018

BRACE

- moldboard

1шт.

4

EX12

MOLDBOARD

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

4шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

195-2032

WASHER - 1" x 7/16" x 16 ga.

1шт.

5

T60822

SHIN

PIECE - moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

6

T62882

SHARE

- 12" curved steel w/bolts

1шт.

T39126

SHARE

- less bolts

1шт.

7

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

8

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

9

T20522

BRACE - long landside

1шт.

10

T62013

LANDSIDE

- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)

1шт.

11

WA887

HEEL

PLATE

1шт.

12

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

13

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

14

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

15

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

16

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

17

T62015

LANDSIDE

- 4" x 1/2" x 14" w/T1575 heel (T85276)

1шт.

18

T1575

BLADE

HEEL CASTING

1шт.

19

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x 16 ga.

2шт.

20

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

21

118-412

BOLT - plow, 5/8" x 2-1/2" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

22

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

23

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

24

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

26

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.
