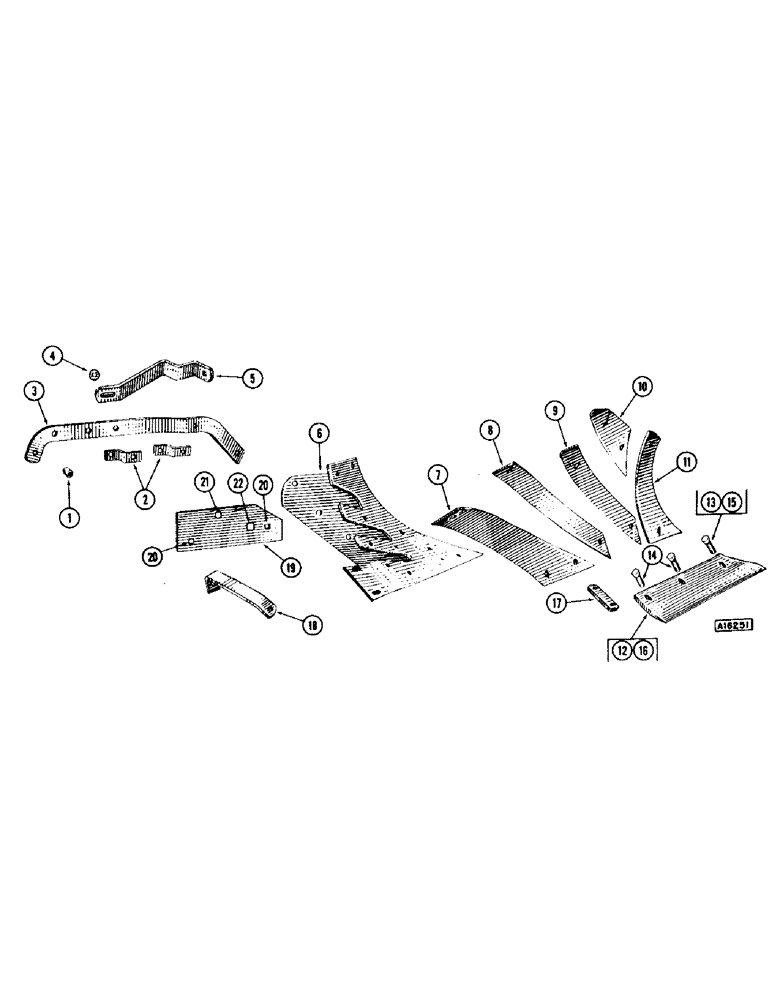

Запчасти Case IH CASE (52) - EXHS14, EXHS16 SLAT, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED

16

T62885

SHARE

- 16" curved steel w/bolts (Per Btm. 16")

1шт.

T39128

SHARE

- less bolts (Per Btm. 16")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.

16

T62886

SHARE

- 16" curved steel, forged tip w/bolts (Per Btm 16")

1шт.

T39135

EDGE

SHARE - less bolts (Per Btm. 16")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

3шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

3шт.

15

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

17

T19441

STRAP

- moldboard

1шт.

18

T16062

BRACE - landside

1шт.

19

T26995

LANDSIDE

- 4" x 3/8" x 11"

1шт.

20

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

21

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

22

T19484

BOLT

- plow, 5/8" x 2-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.
