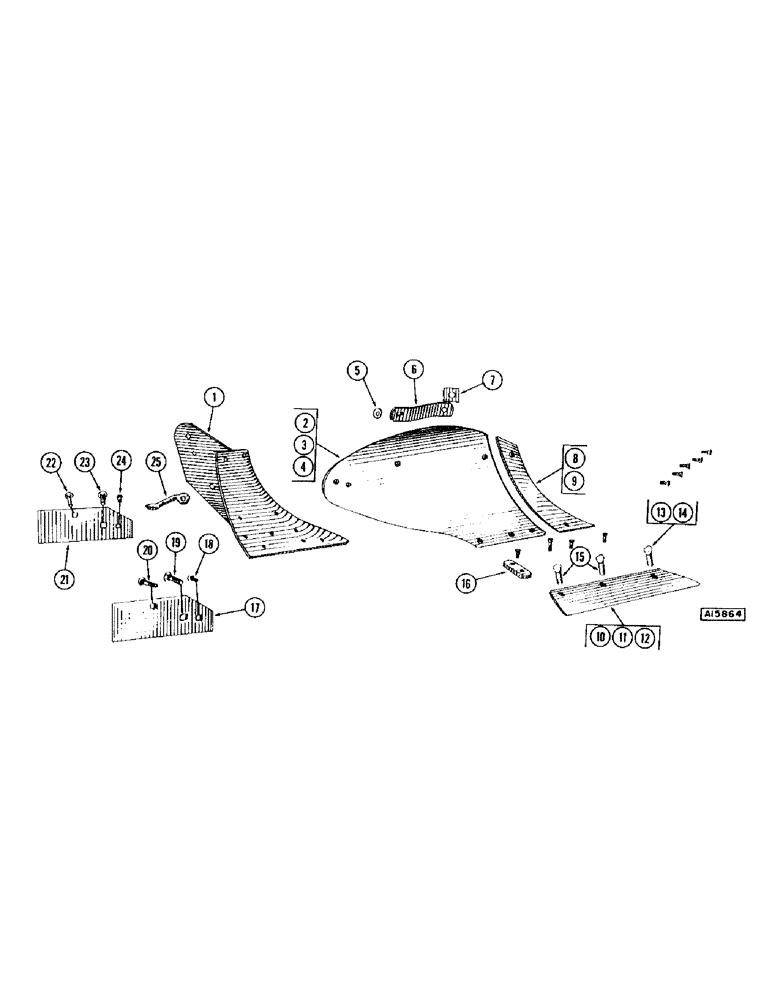

Запчасти Case IH CASE (44) - EXH12, EXH14, EXH16, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED

12

T62886

SHARE

- 16" curved steel, forged tip w/bolts (Per Btm. 16")

1шт.

T39135

EDGE

SHARE - less bolts (Per Btm. 16")

1шт.

14

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

15

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

3шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

3шт.

16

T19441

STRAP

- moldboard (Per Btm. 14", 16")

1шт.

17

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

18

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

19

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

21

T60742

LANDSIDE - 4" x 3/8" x 9-1/4"

1шт.

22

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

23

T19484

BOLT

- plow, 5/8" x 2-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25

T11932

BRACE - moldboard

1шт.
