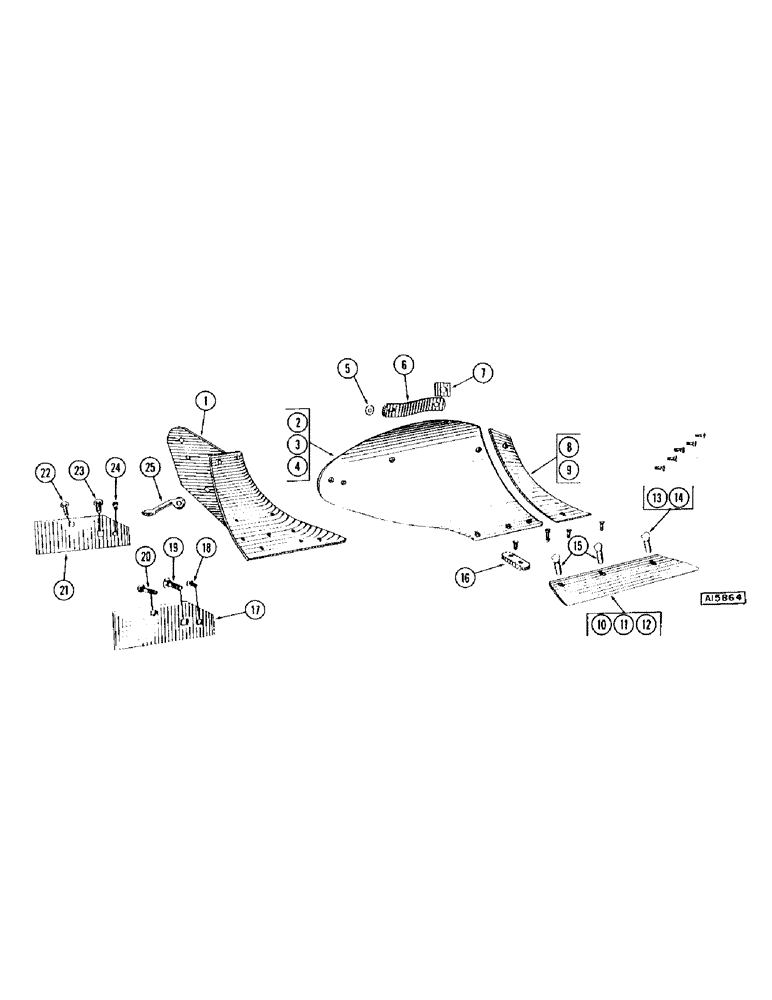

Запчасти Case IH CASE (42) - EXH12, EXH14, EXH16, PER BOTTOM, 14 INCHES AND 16 INCHES

1

T15869

FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" cge.

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" cge.

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

2

EX12

MOLDBOARD

(Per Btm. 12")

1шт.

3

EX14

MOLDBOARD

(Per Btm. 14")

1шт.

4

EX16

MOLDBOARD

(Per Btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut (Per Btm. 12")

4шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut (Per Btm. 14", 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut (Per Btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut (Per Btm. 14", 16")

5шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

195-2032

WASHER - 1" x 7/16" x 16 ga.

1шт.

5

W10579S

WASHER - serrated

1шт.

6

W10539S

BRACE - moldboard

1шт.

7

W2800

BLOCK - beam filler

1шт.

8

T60822

SHIN

PIECE - moldboard (Per Btm. 12", 14")

1шт.

9

T60818

SHIN

PIECE - moldboard (Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

10

T62882

SHARE

- 12" curved steel, w/bolts (Per Btm. 12")

1шт.

T39126

SHARE

- less bolts (Per Btm. 12")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 12")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 12")

1шт.

15

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 12")

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 12")

1шт.

11

T62883

SHARE

- 14" curved steel, w/bolts (Per Btm. 14")

1шт.

T39127

SHARE

- less bolts (Per Btm. 14")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

15

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

2шт.

11

T62884

SHARE

- 14" curved steel, forged tip w/bolts (Per Btm. 14")

1шт.

T39134

SHARE

- less bolts (Per Btm. 14")

1шт.

14

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

15

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

3шт.

11

T39131

SHARE

- 14" curved steel, clipped less bolts (Per Btm. 14")

1шт.

11

T39136

SHARE

- 14" curved steel, forged tip, clipped less bolts (Per Btm. 14")

1шт.

12

T62885

SHARE

- 16" curved steel, w/bolts (Per Btm. 16")

1шт.

T39128

SHARE

- less bolts (Per Btm. 16")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

15

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.
