(36) - EXE14, EXE16 SOD, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED

Запчасти Case IH CASE (36) - EXE14, EXE16 SOD, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED

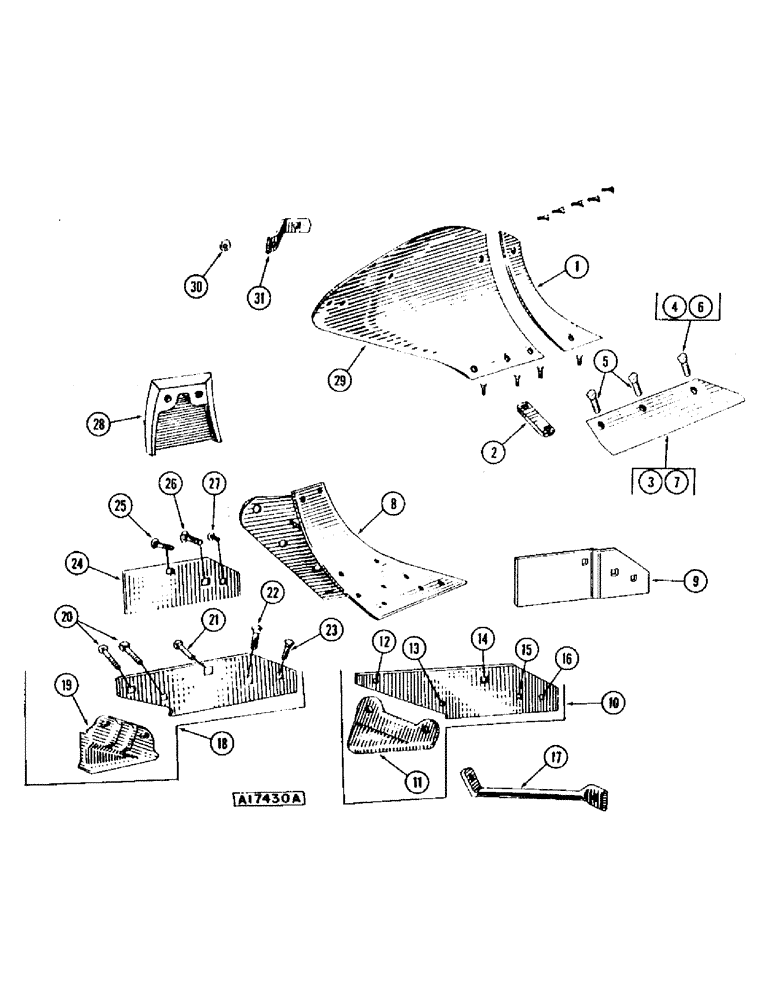

Схема запчастей Case IH CASE - (36) - EXE14, EXE16 SOD, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

T62013

LANDSIDE

- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)

1шт.

11

WA887

HEEL

PLATE

1шт.

12

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

13

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

14

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

15

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

16

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

17

T11757

BRACE - landside to moldboard (Rear bottom only)

1шт.

18

T60283

LANDSIDE

- 4" x 1/2" x 14" w/T1575 heel

1шт.

19

T1575

BLADE

HEEL CASTING

1шт.

20

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x 16 ga.

2шт.

21

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

22

118-408

BOLT

- plow, 5/8" x 2-1/4" P3 grade 5 w/rep. hd.

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

23

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

24

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

25

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

26

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

27

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

28

T1863

BLOCK - frog filler

1шт.

29

T62121

MOLDBOARD

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

3шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

118-127

X

BOLT - plow, 3/8" x 3" P3 gr. 5 w/rep. hd.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

30

W10579S

WASHER - serrated

1шт.

31

T28247

BRACE - moldboard

1шт.
