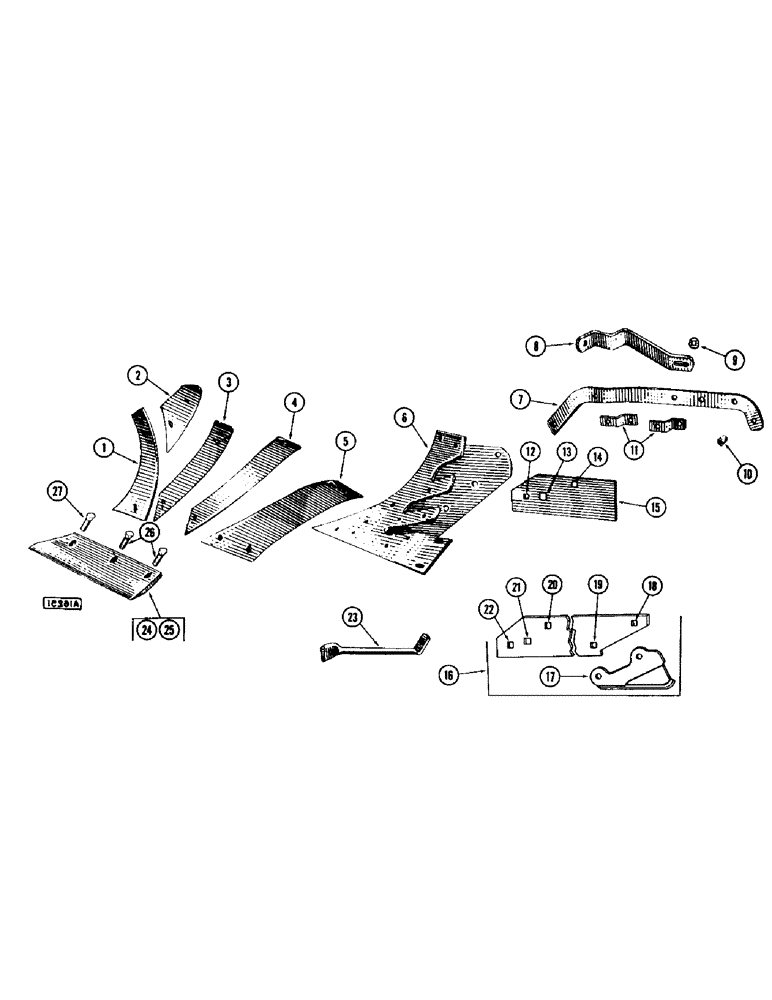

Запчасти Case IH CASE (32) - EXD14 L.H., EXD16 L.H., SLAT, PER BOTTOM, 14 INCH AND 16 INCH, CONTINUED

16

T62014

LANDSIDE

- 4" x 1/2" x 20" w/W1711 heel, rear bottom only (T85272)

1шт.

17

W1711

HEEL

PLATE

1шт.

18

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

19

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

20

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

21

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

22

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

23

T11759

BRACE -, Serial Range: landside-moldboard

1шт.

24

T62889

SHARE

- 14" curved steel, w/bolts (Per Btm. 14")

1шт.

T39129

SHARE

- less bolts (Per Btm. 14")

1шт.

26

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

2шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

2шт.

27

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 14")

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

25

T62888

SHARE

- 16" curved steel, w/bolts (Per Btm. 16")

1шт.

T39130

SHARE

- less bolts (Per Btm. 16")

1шт.

26

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.

27

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.
