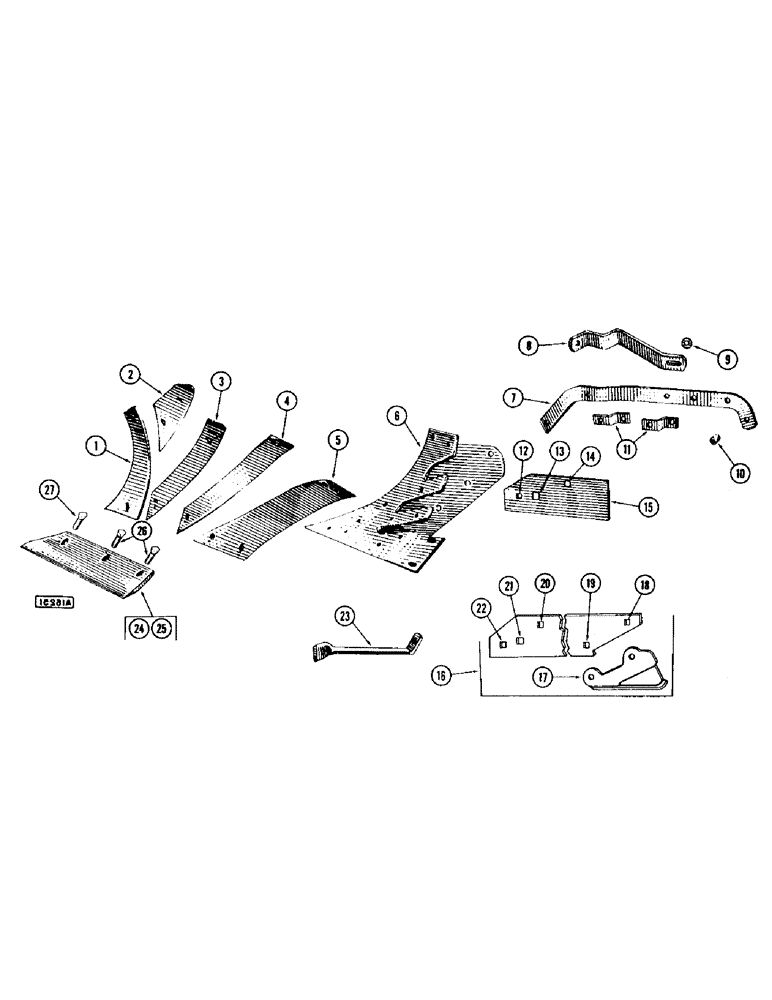

Запчасти Case IH CASE (30) - EXD14 L.H., EXD16 L.H., SLAT, PER BOTTOM, 14 INCH AND 16 INCH

1

T61992

SHIN PIECE - moldboard

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

2

T61997

SLAT - #1

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

3

T61998

SLAT - #2

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

4

T61999

SLAT - #3

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

5

T62000

SLAT - #4

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

T27363

BOLT

- plow, 3/8" x 2-3/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

6

T26973

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

7

T26975

REINFORCEMENT - slat, upper

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

8

T27049

BRACE - moldboard

1шт.

9

W10579S

WASHER - serrated

1шт.

10

H3005S

SPACER

1шт.

11

T27032

CLIP - slat and reinforcement

2шт.

12

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

13

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

14

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

15

T26992

LANDSIDE

- 4" x 3/8" x 11" (T85271)

1шт.
