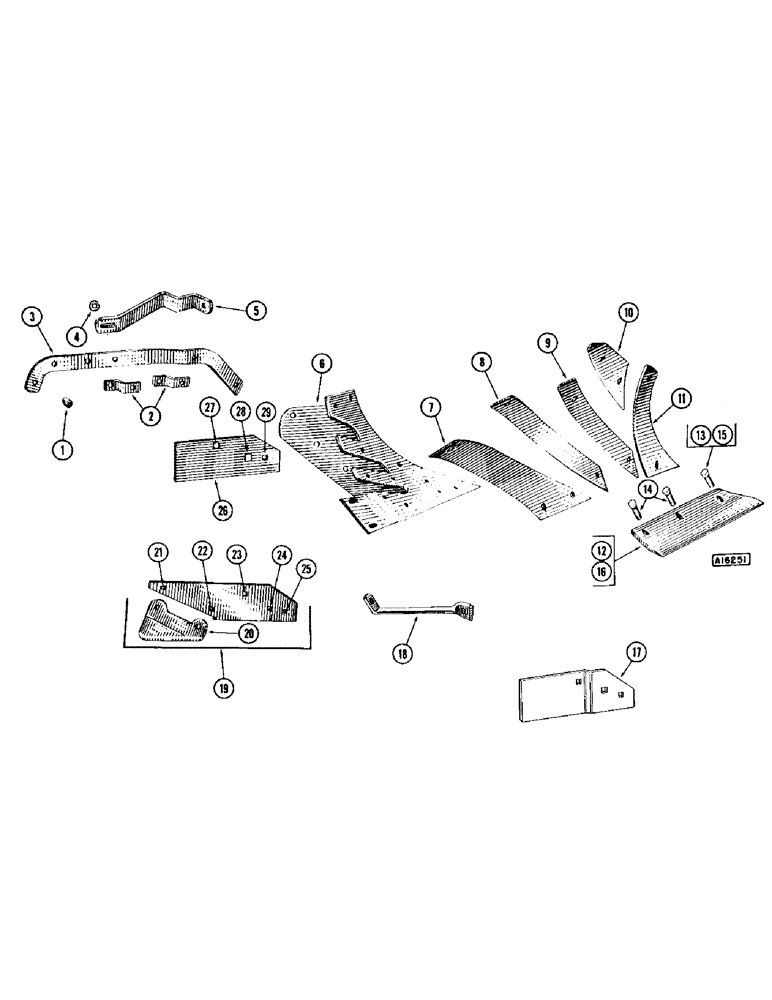

Запчасти Case IH CASE (28) - EXD14, EXD16 SLAT, PER BOTTOM, 14 INCH AND 16 INCH, CONTINUED

16

T62885

SHARE

- 16" curved steel, w/bolts (Per Btm. 16")

1шт.

T39128

SHARE

- less bolts (Per Btm. 16")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.

16

T62886

SHARE

- 16" curved steel, forged tip, w/bolts (Per Btm. 16")

1шт.

T39135

EDGE

SHARE - less bolts (Per Btm. 16")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

3шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

3шт.

15

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018, T63019 & T63020 cover a box of 25 bolts with nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

17

T38346

LANDSIDE

- 4" x 1/2" x 14-1/2" (T87663)

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

O2167TS

SPACER (Not shown)

1шт.

18

T11757

BRACE - landside to moldboard (Rear btm. only)

1шт.

19

T62013

LANDSIDE

- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)

1шт.

20

WA887

HEEL

PLATE

1шт.

21

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

22

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd & N.C. hex. nut

1шт.

23

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

24

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

25

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

26

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

27

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

28

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

29

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd & N.C. hex. nut

1шт.
