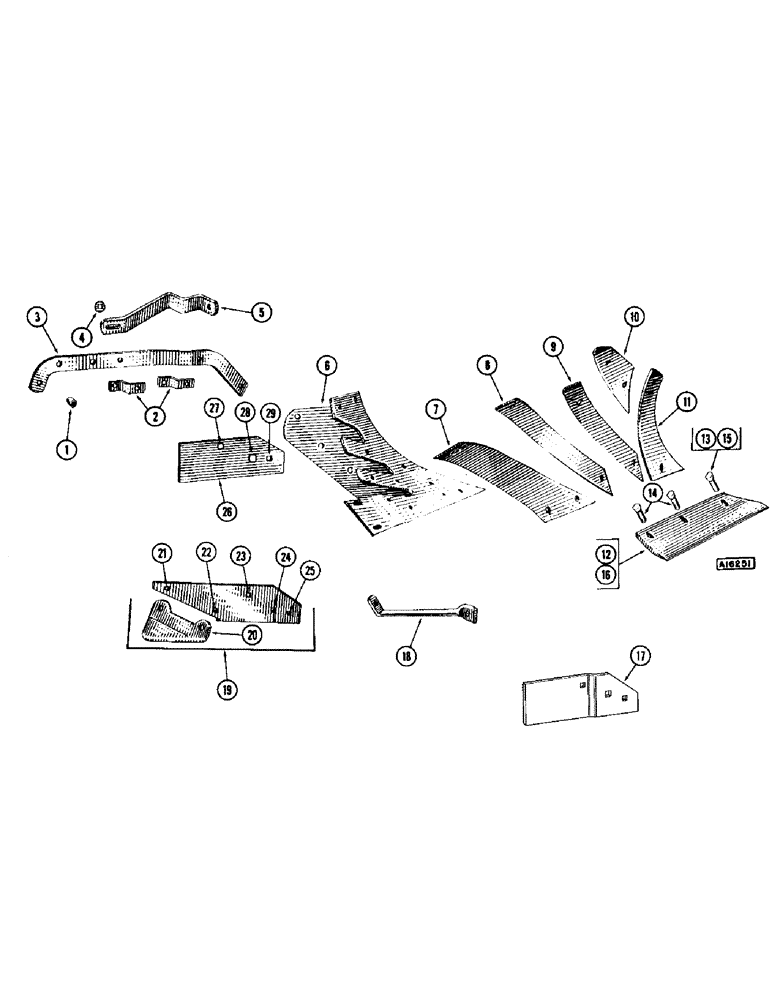

Запчасти Case IH CASE (26) - EXD14, EXD16 SLAT, PER BOTTOM, 14 INCH AND 16 INCH

1

H3005S

SPACER

1шт.

2

T14134

CLIP - slat and reinforcement

2шт.

3

T14133

REINFORCEMENT - slat, upper

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

1шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

2шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

4

W10579S

WASHER - serrated

1шт.

5

T21191

BRACE - moldboard

1шт.

6

T38965

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

7

T61996

SLAT

- #4

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

T27363

BOLT

- plow, 3/8" x 2-3/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

8

T61995

SLAT

- #3

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

9

T61994

SLAT

- #2

1шт.

T19468

BOLT - plow, 3/8" x 1" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

10

T61993

SLAT

- #1

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

11

T61990

SHIM

SHIN PIECE - moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

12

T62883

SHARE

- 14" curved steel, w/bolts (Per Btm. 14")

1шт.

T39127

SHARE

- less bolts (Per Btm. 14")

1шт.

13

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

2шт.

12

T39131

SHARE

- 14" curved steel, clipped less bolts (Per Btm. 14")

1шт.

12

T62884

SHARE

- 14" curved steel, forged tip, w/bolts (Per Btm. 14")

1шт.

T39134

SHARE

- less bolts (Per Btm. 14")

1шт.

14

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

3шт.

15

T63020

BOLT

BOLT - clipped hd. 1/2" x 1-1/4" gr. 8 (Per Btm. 14")

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

12

T39136

SHARE

- 14" curved steel, forged tip, clipped less bolts (Per Btm. 14")

1шт.
