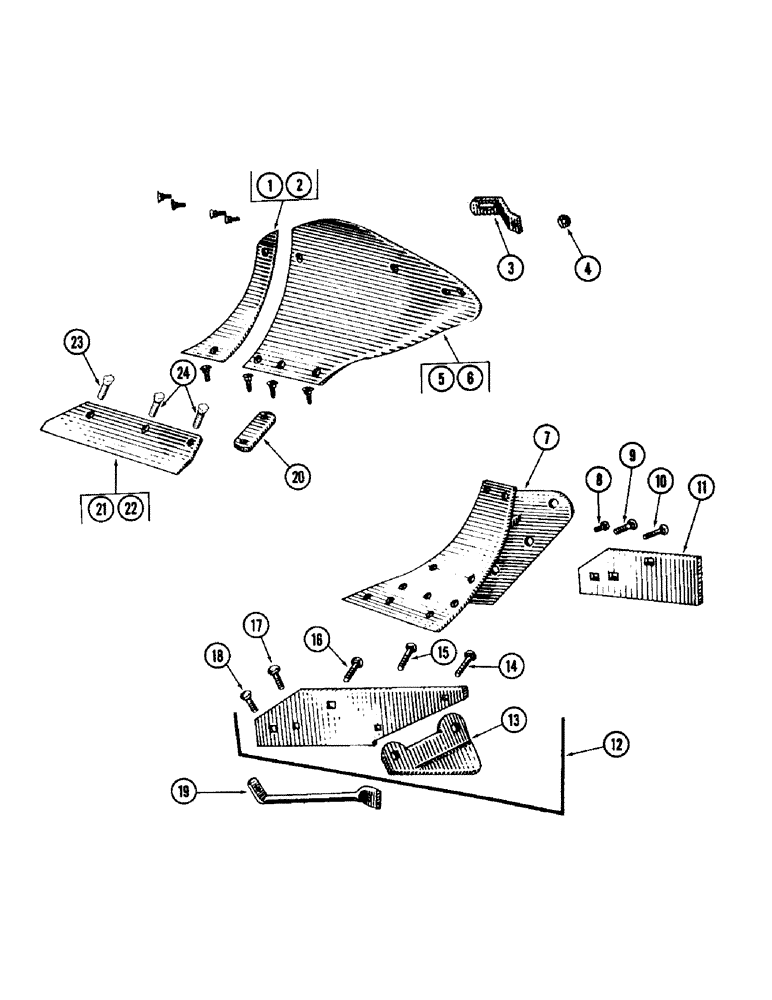

Запчасти Case IH CASE (24) - EXC14 L.H., EXC16 L.H., PER BOTTOM, 14 INCH AND 16 INCH

1

T61986

SHIN PIECE - moldboard (Per Btm. 14")

1шт.

2

T61988

SHIN

PIECE - moldboard (Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

3

T18018

BRACE

- moldboard

1шт.

4

W10579S

WASHER - serrated

1шт.

5

T61985

MOLDBOARD (Per Btm. 14")

1шт.

6

T61987

MOLDBOARD

(Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

6шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

7

T26958

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

8

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

9

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

10

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

11

T26992

LANDSIDE

- 4" x 3/8" x 11" (T85271)

1шт.

12

T62014

LANDSIDE

- 4" x 1/2" x 20" w/W1711 heel, rear bottom only (T85272)

1шт.

13

W1711

HEEL

PLATE

1шт.

14

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

15

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

16

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

17

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

18

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

19

T11759

BRACE - landside to moldboard (Rear btm. only)

1шт.

20

T19441

STRAP

- moldboard

1шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

1шт.

21

T62889

SHARE

- 14" curved steel, w/bolts (Per Btm. 14")

1шт.

T39129

SHARE

- less bolts (Per Btm. 14")

1шт.

23

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 14")

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 14")

1шт.

24

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 14")

2шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 14")

2шт.

22

T62888

SHARE

- 16" curved steel, w/bolts (Per Btm. 16")

1шт.

T39130

SHARE

- less bolts (Per Btm. 16")

1шт.

23

T63018

BOLT

- clipped hd. 1/2" x 1-1/8" gr. 8 (Per Btm. 16")

1шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Per Btm. 16")

1шт.

24

T63019

BOLT

BOLT - clipped hd. 3/8" x 1-1/8" gr. 8 (Per Btm. 16")

2шт.

P/N's T63018 & T63019 cover a box of 25 bolts w/nuts.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Per Btm. 16")

2шт.
