(22) - EXC14, EXC16, PER BOTTOM, 14 INCH AND 16 INCH, CONTINUED

Запчасти Case IH CASE (22) - EXC14, EXC16, PER BOTTOM, 14 INCH AND 16 INCH, CONTINUED

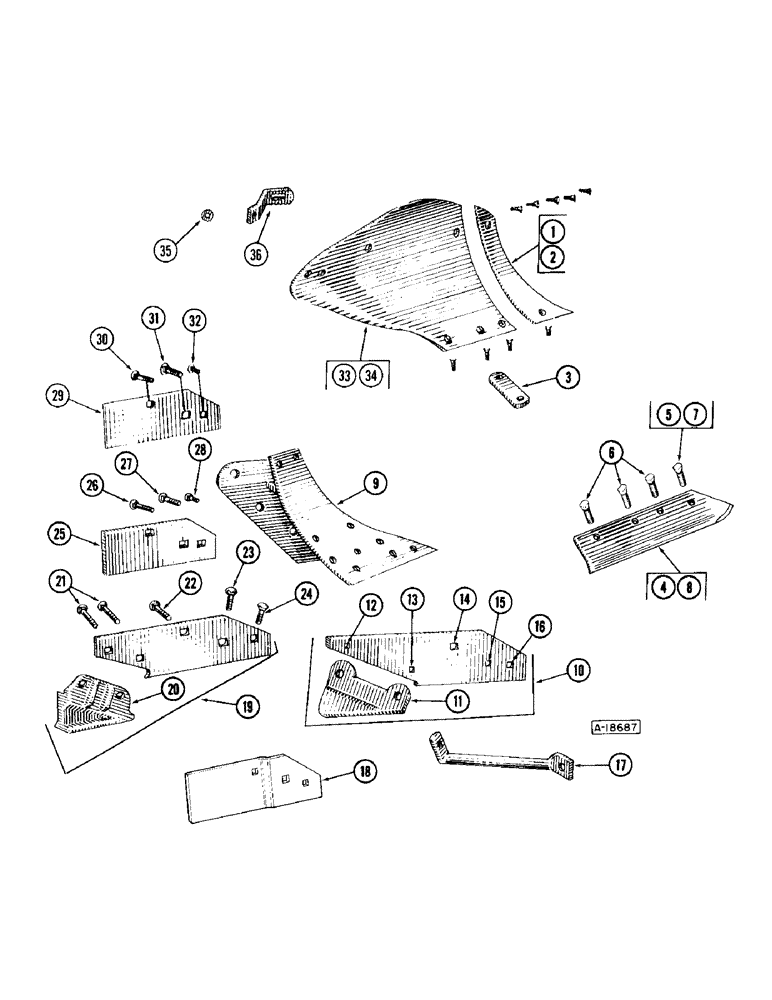

Схема запчастей Case IH CASE - (22) - EXC14, EXC16, PER BOTTOM, 14 INCH AND 16 INCH, CONTINUED
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

18

T38346

LANDSIDE

- 4" x 1/2" x 14-1/2" (T87663)

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

O2167TS

SPACER (Not shown)

1шт.

19

T62015

LANDSIDE

- 4" x 1/2" x 14" w/T1575 heel

1шт.

20

T1575

BLADE

HEEL CASTING

1шт.

21

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x 16 ga.

2шт.

22

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

23

118-412

BOLT - plow, 5/8" x 2-1/2" P3 grade 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

24

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

25

T26991

LANDSIDE

- 4" x 3/8" x 11" (Replaces T60590)

1шт.

26

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

27

118-408

BOLT

- plow, 5/8" x 2-1/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

28

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-6

LOCK WASHER,3/8"

1шт.

29

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

30

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

31

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

32

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

33

T60000

MOLDBOARD

(Per Btm. 14")

1шт.

34

T60001

MOLDBOARD

(Per Btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

6шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

35

W10579S

WASHER - serrated

1шт.

36

T18018

BRACE

- moldboard

1шт.
