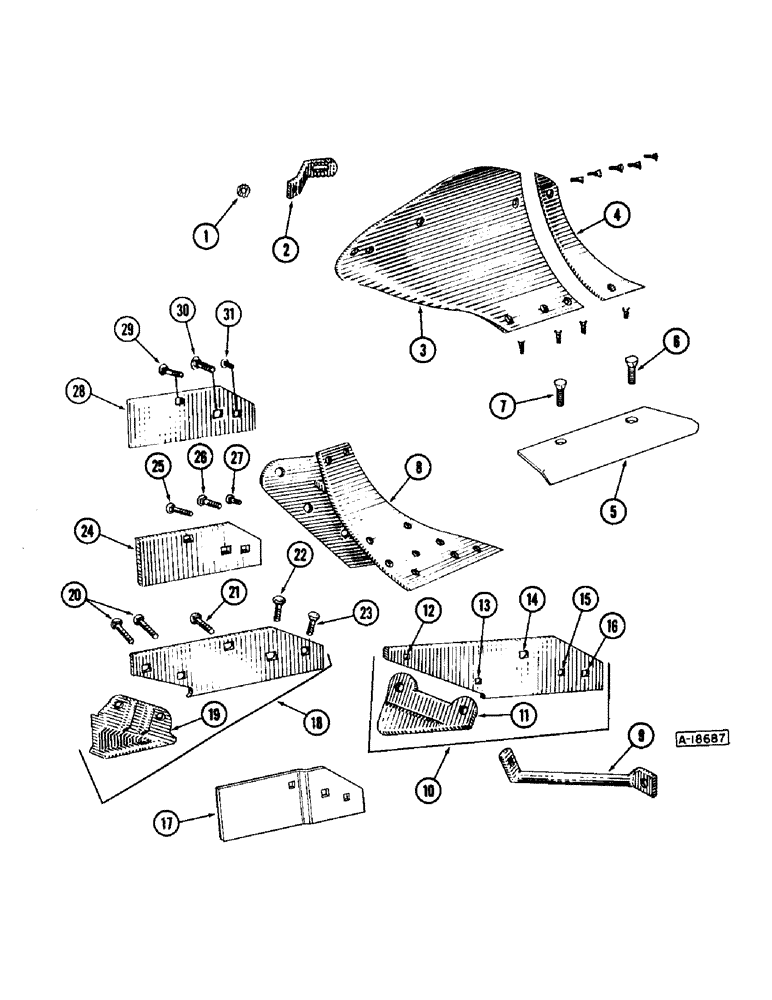

Запчасти Case IH CASE (16) - EXC12, PER BOTTOM
№
Артикул
Название
Примечание
Количество
1
W10579S
WASHER - serrated
1шт.
2
T18018
BRACE
- moldboard
1шт.
195-2032
WASHER - 1" x 7/16" x 16 ga.
1шт.
3
EXC12
MOLDBOARD
1шт.
T19469
BOLT
- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut
3шт.
T19471
PLOW BOLT
BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
4
T60002
SHIN
PIECE - moldboard
1шт.
T19469
BOLT
- plow, 3/8" x 1-1/8" P3 grade 5 w/rep. hd. & N.C. hex. nut
2шт.
92-6
LOCK WASHER,3/8"
2шт.
5
T62882
SHARE
- 12" curved steel, w/bolts
1шт.
T39126
SHARE
- less bolts
1шт.
6
T63018
BOLT
- clipped hd. 1/2" x 1-1/8" gr. 8
1шт.
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
1шт.
7
T63019
BOLT
BOLT - clipped hd. 3/8" x 1-1/8" gr. 8
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
8
T38395
FROG
1шт.
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
- 1/2 x 2-1/4" N.C. hex.
1шт.
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
1шт.
25-1010
NUT,5/8"-11, G5
1шт.
9
T11757
BRACE - landside to moldboard (Rear btm. only)
1шт.
10
T62013
LANDSIDE
- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)
1шт.
11
WA887
HEEL
PLATE
1шт.
12
T19473
PLOW BOLT
BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
13
T19475
BOLT
- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
14
T19482
PLOW BOLT
BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
15
118-414
BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.
1шт.
25-1010
NUT,5/8"-11, G5
1шт.
16
T19472
BOLT (SPREADER)
BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
17
T38346
LANDSIDE
- 4" x 1/2" x 14-1/2" (T87663)
1шт.
T19473
PLOW BOLT
BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
T19483
PLOW BOLT
BOLT - plow, 1/2" x 3" P3 grade 5 w/rep. hd. & N.C. hex. nut
1шт.
92-8
LOCK WASHER,1/2"
1шт.
118-414
BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.
1шт.
25-1010
NUT,5/8"-11, G5
1шт.
O2167TS
SPACER (Not shown)
1шт.
Выбрано товаров: 37
