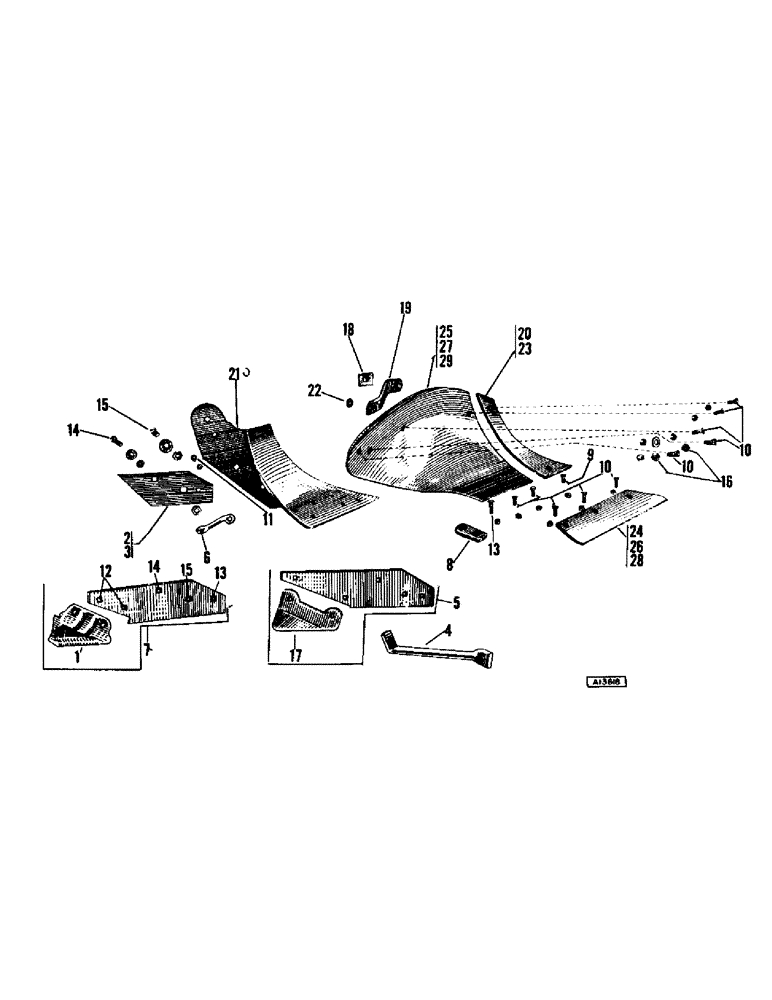

Запчасти Case IH CASE (010) - EX EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

1

T1575

BLADE

HEEL CASTING

1шт.

2

T60742

LANDSIDE - short, 4" x 3/8" x 9-1/4"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19471

PLOW BOLT

BOLT - 3/8" x 1-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- 5/8" x 2-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - 1/2" x 3" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

3

T26991

LANDSIDE

- medium, 4" x 3/8" x 11"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19471

PLOW BOLT

BOLT - 3/8" x 1-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- 5/8" x 2-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - 1/2" x 3" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

4

T11757

BRACE - long landside to moldboard, 3/4" rd. x 12", rear bottom only

1шт.

5

T62013

LANDSIDE

- extra long, 4" x 1/2" x 20", rear bottom only w/heel

1шт.

T19473

PLOW BOLT

BOLT - 3/8" x 1-1/2" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

3шт.

T19475

BOLT

- 3/8" x 2" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - 1/2" x 3" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- 5/8" x 2-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

6

T11932

BRACE - moldboard, 5/8" rd. x 8-1/4"

1шт.

7

T62015

LANDSIDE

- 4" x 1/2" x 14" w/T1575 chilled heel piece - front bottoms only

1шт.

T19471

PLOW BOLT

BOLT - 3/8" x 1-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - 3/8" x 1-3/8" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

2шт.

T19483

PLOW BOLT

BOLT - 1/2" x 3" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- 5/8" x 2-1/4" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga. on T19472

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) on T19483 1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. on T19484

1шт.

8

T19441

STRAP

- share and moldboard (Per btm. 14" & 16")

1шт.

9

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. and N.C. hex nut

1шт.

10

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

10шт.

11

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

12

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

2шт.

13

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

2шт.
