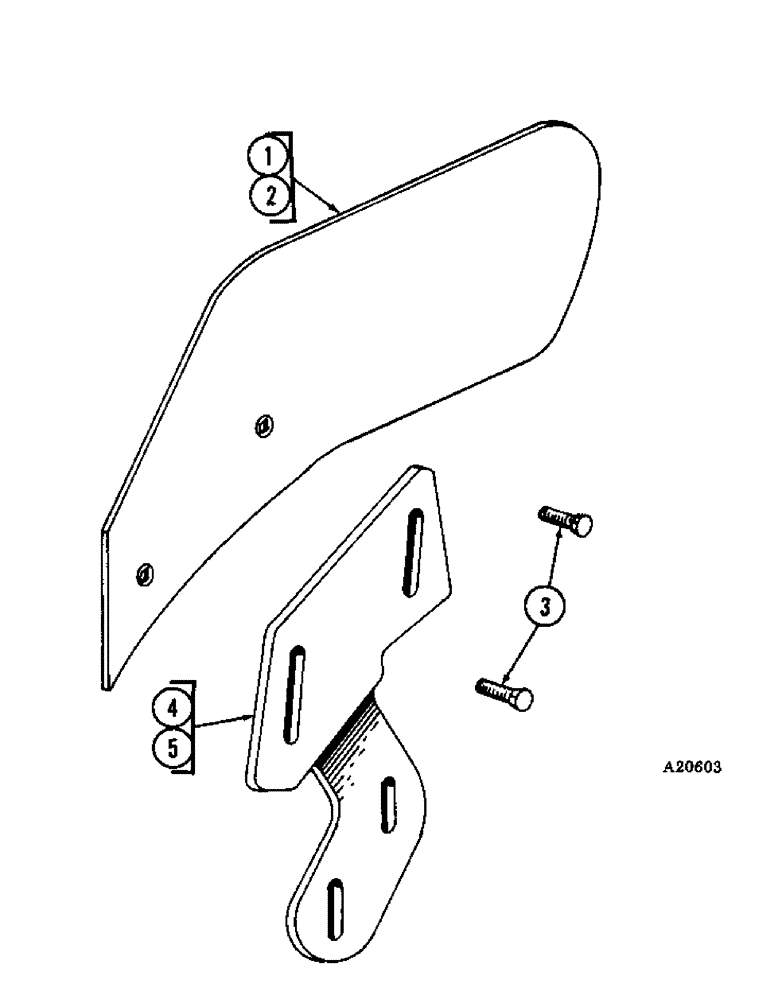

Запчасти Case IH CASE (120) - TRASHBOARD

1

T26887

BLADE - trashboard, R.H. (Use T62491) (YR. - 64-65)

1шт.

1

T62491

BOARD

BLADE - trashboard, R.H. (Rep. T26887 inter.) (YR. - 66-)

1шт.

T62142

BOLT

- plow, 3/8" x 1-1/8" P# SAE grade 5 w/N.C. hex jam nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

2

T26888

BLADE - trashboard, L.H. (Use T62492) (YR. - 64-65)

1шт.

2

T62492

BOARD

BLADE - trashboard, L.H. (Rep. T26888 inter.) (YR. - 66-)

1шт.

3

T62142

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut

2шт.

92-6

LOCK WASHER,3/8"

2шт.

4

T1817

X

SUPPORT - trashboard, R.H. (Use T1878) (YR. - 64-65)

1шт.

4

T1878

SUPPORT

- trashboard, R.H. (YR. - 66-)

1шт.

195-2057

WASHER - 1-1/4" x 9/16" x #12 ga.

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

5

T1818

SUPPORT - trashboard, L.H. (YR. - 64-65)

1шт.

5

T1879

SUPPORT - trashboard, L.H. (YR. - 66-)

1шт.

195-2507

WASHER - 1-1/4" x 9/16" x #12 ga.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.
