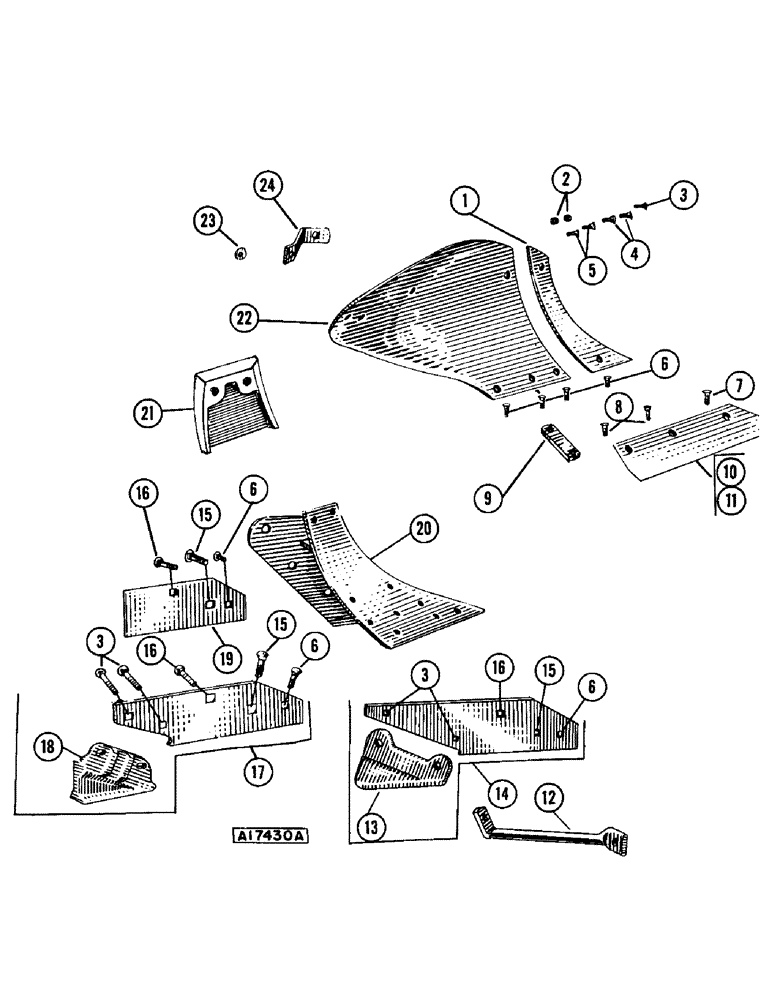

Запчасти Case IH CASE (114) - EXE 14 INCH AND 16 INCH SOD BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

17

T60283

LANDSIDE

- 4" x 1/2" x 14", w/T1575

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

18

T1575

BLADE

HEEL CASTING

1шт.

19

T26991

LANDSIDE

- 4" x 3/8" x 11"

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex

1шт.

20

T26961

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

21

T1863

BLOCK - frog filler

1шт.

22

T62121

MOLDBOARD

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

4шт.

118-127

X

BOLT - plow, 3/8" x 3" P#3 grade 5 w/rep. hd.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

23

W10579S

WASHER - serrated

1шт.

24

T27868

BRACE - moldboard

1шт.
