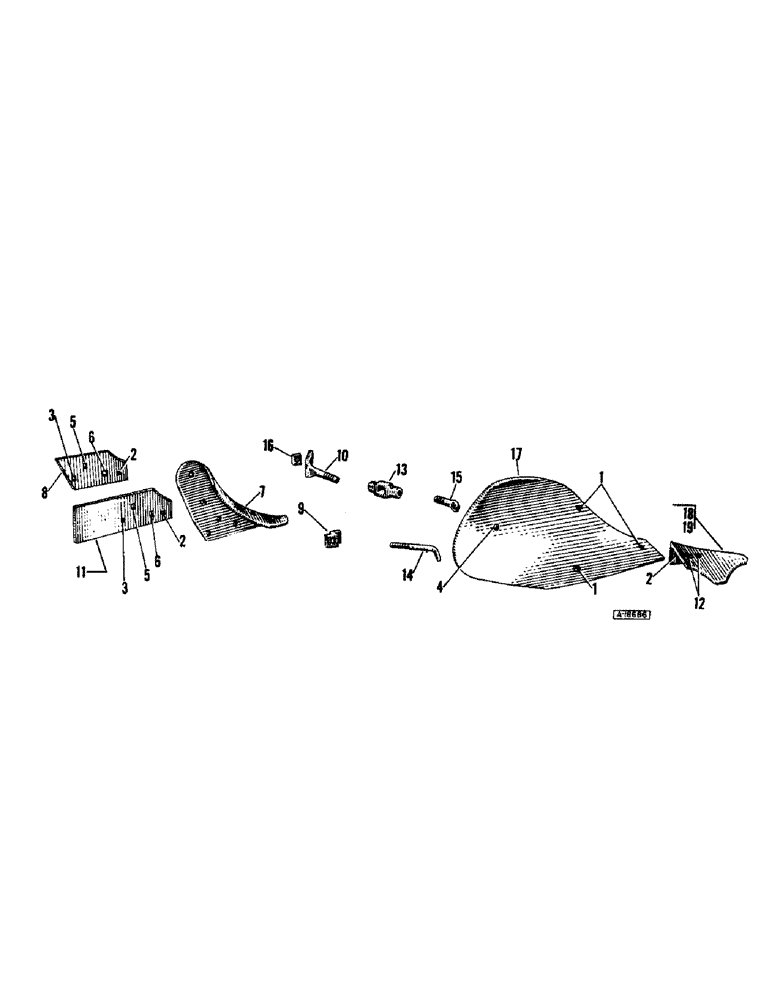

Запчасти Case IH CASE (106) - G12 SCOTCH BOTTOM, PER BOTTOM

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

3

T19477

BOLT

- plow, 7/16" x 1-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

T20802

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

8

T27014

LANDSIDE - short

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19477

BOLT

- plow, 7/16" x 1-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

9

T20804

BRACE - moldboard, lower

1шт.

10

T20805

BRACE - moldboard, upper

1шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex jam

1шт.

11

T60710

LANDSIDE - long (Hardware same as ref. no. 8)

1шт.

12

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 and N.C. hex nut

2шт.

13

W2713

TURNBUCKLE - upper brace

1шт.

14

W9086S

BRACE - moldboard, lower

1шт.

25-1010

NUT,5/8"-11, G5

2шт.

15

W9908S

BRACE - moldboard, upper

1шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex jam

1шт.

16

W9910S

WASHER - beam filler

1шт.

17

GA10

MOLDBOARD

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

18

T1959

SHARE - cast (Was CG9)

1шт.

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex nut

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

19

SG9

SHARE

1шт.

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex nut

2шт.

T19473

PLOW BOLT

BOLT - plow, 1/2" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.
