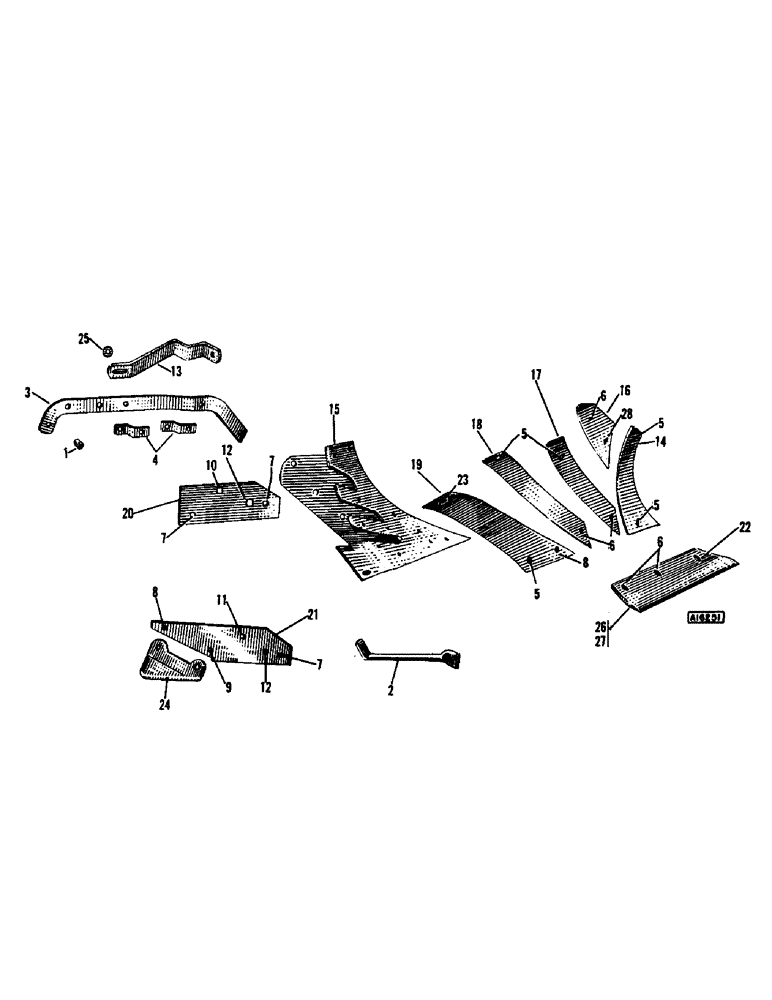

Запчасти Case IH CASE (098) - EXD 14 INCH AND 16 INCH EAGLE SLAT BOTTOMS, PER BOTTOM 14 INCH AND 16 INCH

1

H3005S

SPACER

1шт.

2

T11757

BRACE - landside to moldboard (Rear btm. only)

1шт.

3

T14133

REINFORCEMENT - slat, upper

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex bolt

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

4

T14134

CLIP - slat and reinforcement

2шт.

5

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

5шт.

6

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

5шт.

7

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

2шт.

8

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

9

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

10

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

11

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

12

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

13

T21191

BRACE - moldboard

1шт.

14

T61990

SHIM

SHIN - moldboard

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

2шт.

15

T26965

FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

16

T61993

SLAT

- #1

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

17

T61994

SLAT

- #2

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

18

T61995

SLAT

- #3

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

19

T61996

SLAT

- #4

1шт.

T19468

BOLT - plow, 2/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T27363

BOLT

- plow, 2/8" x 2-3/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.
