(CASE) - MOUNTED MOLDBOARD PLOW BOTTOMS (1/64-12/79)
/

(094) - EXHS EAGLE SLAT BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

Запчасти Case IH CASE (094) - EXHS EAGLE SLAT BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

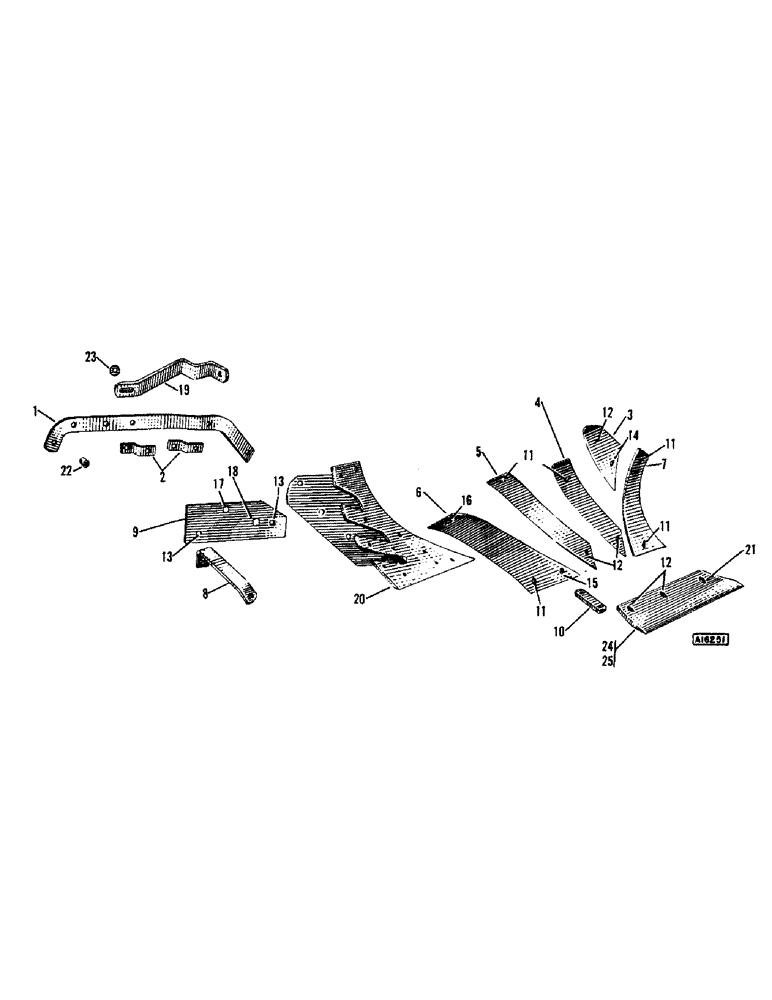

Схема запчастей Case IH CASE - (094) - EXHS EAGLE SLAT BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

№

Артикул

Название

Примечание

Количество

1

T14133

REINFORCEMENT - slat, upper

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

2

T14134

CLIP - slat and reinforcement

2шт.

3

T60594

SLAT

- #1

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T60595

SLAT

- #2

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T60596

SLAT

- #3

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T60597

SLAT

- #4

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19476

BOLT

- plow, 3/8" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

T60557

SHIN

- moldboard

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

8

T16062

BRACE - landside

1шт.

9

T26995

LANDSIDE

- 4" x 3/8" x 11"

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

10

T19441

STRAP

- moldboard and brace

1шт.

11

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

5шт.

12

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

5шт.

13

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

14

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

T19476

BOLT

- plow, 3/8" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

Выбрано товаров: 33
