(CASE) - MOUNTED MOLDBOARD PLOW BOTTOMS (1/64-12/79)
/

(092) - EXC 14L AND 16L EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

Запчасти Case IH CASE (092) - EXC 14L AND 16L EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

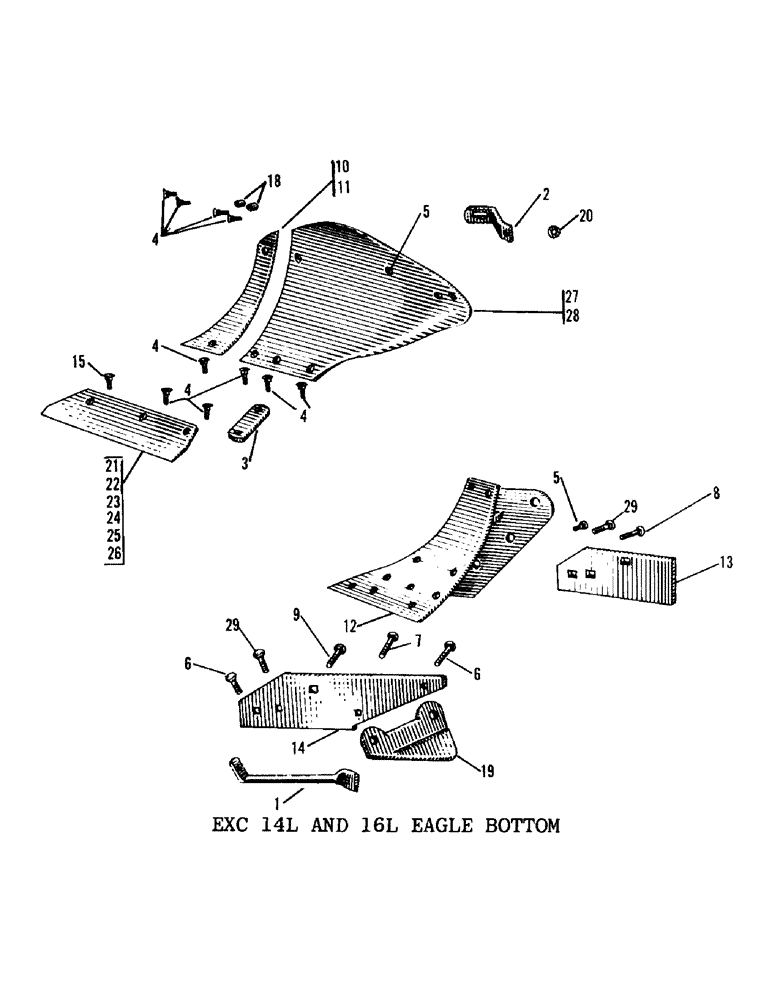

Схема запчастей Case IH CASE - (092) - EXC 14L AND 16L EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

№

Артикул

Название

Примечание

Количество

21

E14AL

SHARE - 14" curved steel, with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

22

EE14AL

SHARE

- 14" curved steel less bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14AHL

SHARE - 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

24

E16AL

SHARE

- 16" curved steel, with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

25

EE16AL

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

26

EE16AHL

SHARE - 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

27

T61985

MOLDBOARD - "EXC 14 L" (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

4шт.

T19471

PLOW BOLT

BOLT - plow, 5/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

28

T61987

MOLDBOARD

- "EXC 16 L" (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

4шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

29

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

Выбрано товаров: 25
