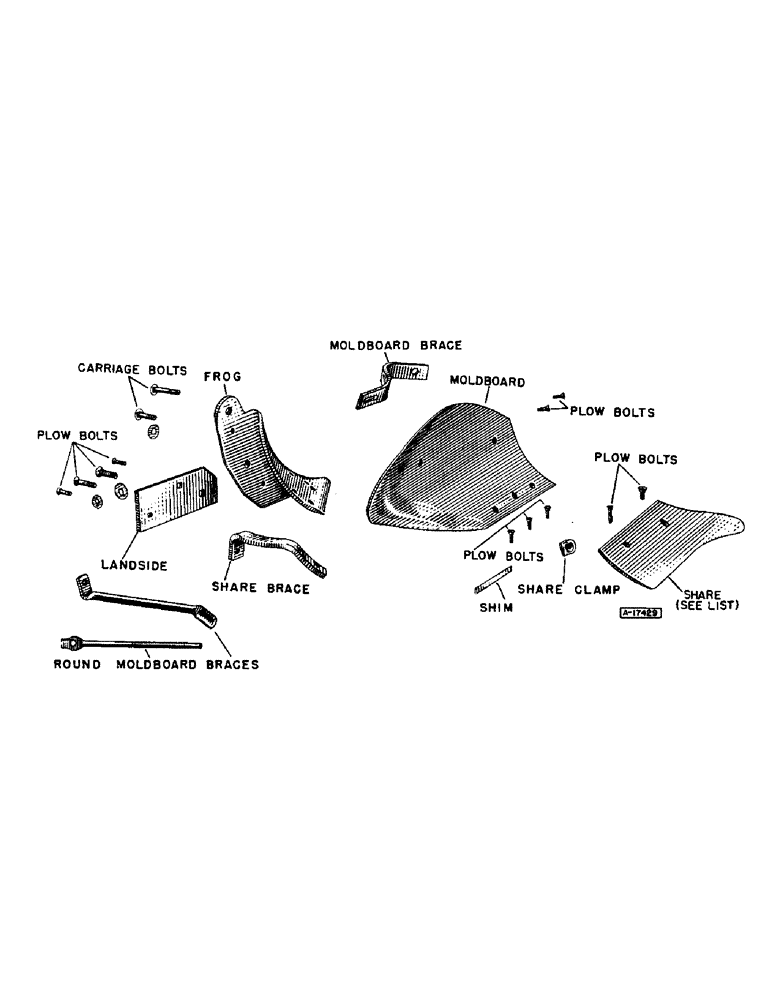

Запчасти Case IH CASE (082) - HCX BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Moldboard - 4, share - 4, landside and frog - 1)

9шт.

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE gr. 5 (Landside & share brace)

1шт.

Includes Rep. hd. NC hex nut

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE gr. 5 (Landside frog and beam)

1шт.

Includes Rep. hd. NC hex nut

1шт.

X428

BRACE - moldboard

1шт.

T26996

LANDSIDE

1шт.

T22671

BRACE - share (Per btm. 14")

1шт.

X1886

BRACE - share (Per btm. 16")

1шт.

X2748

FROG - heavy "C" (1/2")

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

2шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

Z1657

BOLT

- plow, 5/8" x 2-1/2" P#3 w/N.C. hex nut (Landside, frog & beam)

1шт.

CX14

MOLDBOARD (Per btm. 14")

1шт.

CX16

MOLDBOARD (Per btm. 16")

1шт.

HBX14

SHARE - soft center (Per btm. 14")

1шт.

HBX16

SHARE - soft center (Per btm. 16")

1шт.

SHBX14

SHARE - 14" solid steel (Per btm. 14")

1шт.

SHBX16

SHARE - 16" solid steel (Per btm. 16")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 (Moldboard) BX BOTTOMS

5шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga. (Brace bolt) BX Bottoms

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 (Landside and frog - 1, heel - 2) BX BOTTOMS

3шт.

Includes Rep. hd. NC hex nut

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE gr. 5 (Share and clamp) BX BOTTOMS

1шт.

Includes Rep. hd. NC hex nut

1шт.

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE gr. 5 (Landside and share brace) BX BOTTOMS

1шт.

Includes Rep. hd. NC hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE gr. 5 (Landside, frog and beam) BX BOTTOMS

1шт.

Includes Rep. hd. NC hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 (Landside, frog and beam) BX BOTTOMS

1шт.

Includes Rep. hd. NC hex nut

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga. BX BOTTOMS

1шт.

T1575

BLADE

HEEL - long landside BX BOTTOMS

1шт.

W8304S

CLAMP - share BX BOTTOMS

1шт.

W9158S

LANDSIDE - short, 4" x 1/2" x 12" BX BOTTOMS

1шт.

W9160S

LANDSIDE - long, 4" x 1/2" x 16-1/2" BX BOTTOMS

1шт.

X428

BRACE - moldboard (1-1/2" x 1/2" x 15-1/2") BX BOTTOMS

1шт.

T22671

BRACE - share, 1-1/2" x 1/2" x 12-3/4" (Per btm. 14") BX BOTTOMS

1шт.

X1851

BRACE - share, 1-1/2" x 1/2" x 16" (Per btm. 16") BX BOTTOMS

1шт.

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 w/N.C. hex nut (Frog and share brace) BX BOTTOMS

1шт.

XA1897

FROG - "B" (Hardware same as for X2748 - frog - above) BX BOTTOMS

1шт.

T61207

MOLDBOARD - (Was BX14) (Per btm. 14") BX BOTTOMS

1шт.

T61206

MOLDBOARD - (Was BX16) (Per btm. 14") BX BOTTOMS

1шт.

14D

SHARE

- soft center (Per btm. 14") BX BOTTOMS

1шт.

16D

SHARE

- soft center (Per btm. 16") BX BOTTOMS

1шт.

S14D

SHARE

- solid steel (Per btm. 14") BX BOTTOMS

1шт.

S16D

SHARE

- solid steel (Per btm. 16") BX BOTTOMS

1шт.
