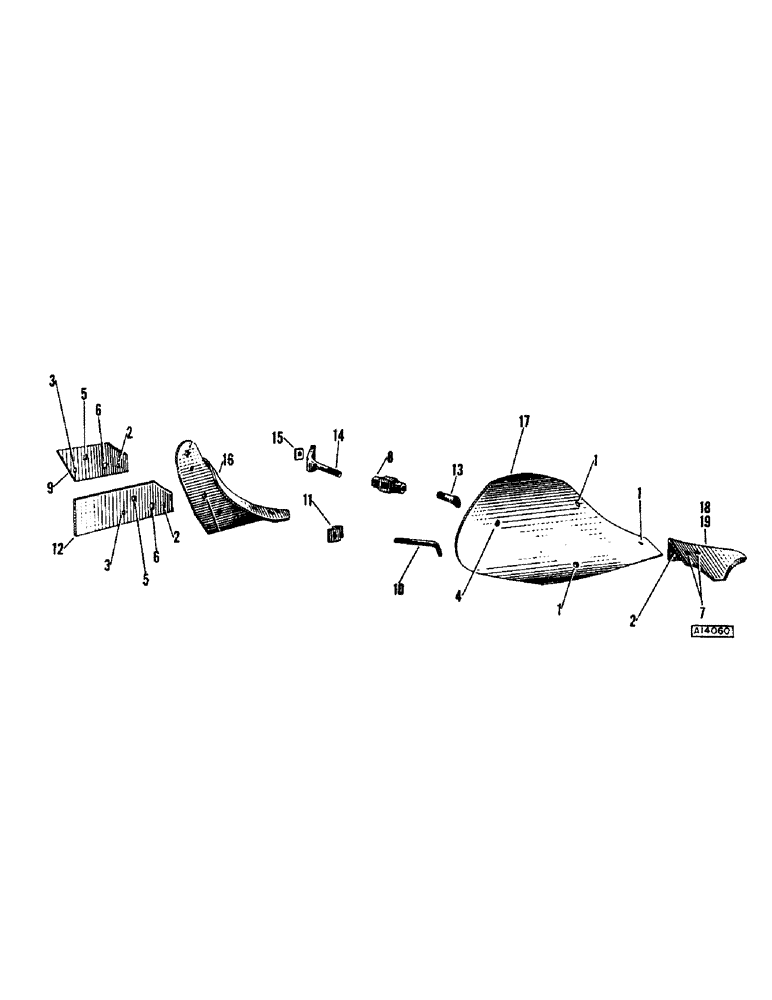

Запчасти Case IH CASE (076) - GE 10 INCH SCOTCH BOTTOM, PER BOTTOM

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

3

T19477

BOLT

- plow, 7/16" x 1-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 and N.C. jam nut

2шт.

8

W2713

TURNBUCKLE - upper brace

1шт.

9

T60941

LANDSIDE - short

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19477

BOLT

- plow, 7/16" x 1-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

10

W9086S

BRACE - moldboard, lower, 5/8" rd. x 7-1/2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"-18, G5

2шт.

11

W9279S

BRACE - moldboard, lower, 1-1/2" x 7/16" x 5-5/8"

1шт.

12

T27004

LANDSIDE - long (Hardware same as ref. no. 9)

1шт.

13

W9908S

BRACE - moldboard, upper, 3/4" rd. x 5", use w/W9909S flat brace

1шт.

22346R1

JAM NUT,Jam, 3/4"-10, G5, LH

- 3/4" N.C., L.H. hex jam

1шт.

14

W9909S

BRACE - moldboard, upper, 1-3/4" x 5/8" x 8-1/4", use w/W9908S round brace

1шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex jam

1шт.

15

W9910S

BLOCK - beam filler

1шт.

16

WB7767S

"G" FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" carriage

1шт.

11-852

BOLT - 1/2" x 3-1/4" carriage

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

17

GA10

MOLDBOARD

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

18

T1959

SHARE - cast (Was CG9)

1шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

19

SG9

SHARE

1шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/N.C. hex jam nut

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.
