(074) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED

Запчасти Case IH CASE (074) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED

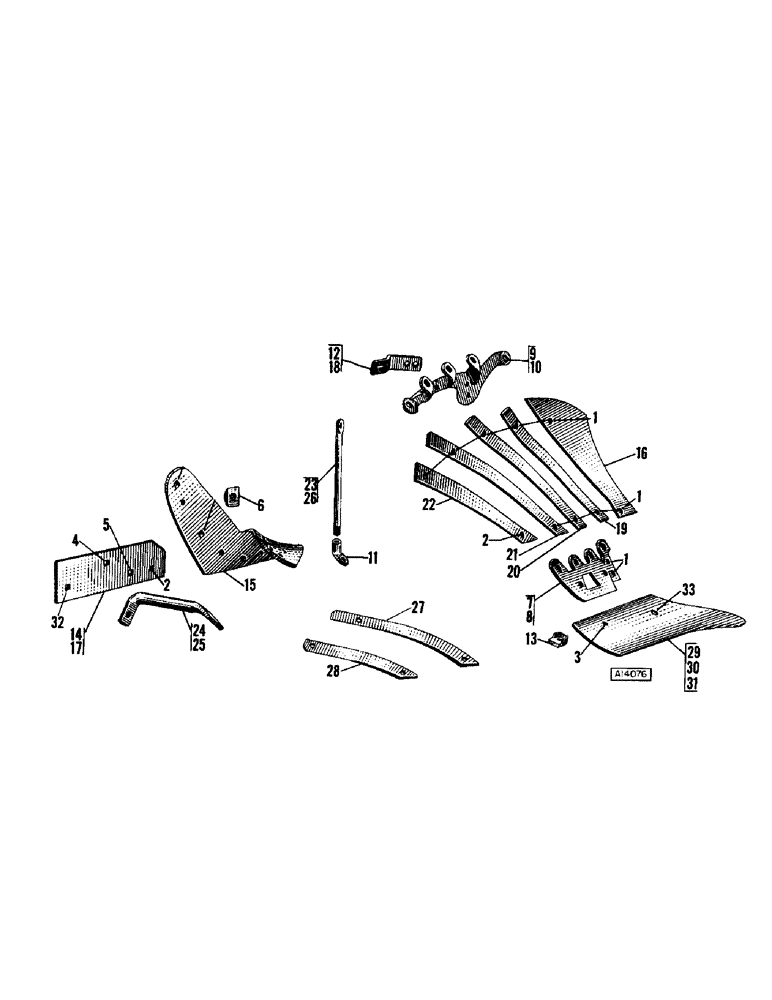

Схема запчастей Case IH CASE - (074) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

20

T60251

SLAT - no. 3

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

21

T60252

SLAT - no. 4

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

22

T61636

SLAT - no. 5 (Per btm. 12" & 14")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

1шт.

23

X468

BRACE - moldboard, 5/8" rd. x 14" (Per btm. 12" & 14")

1шт.

24

X469

BRACE - share, 1" rd. x 13" (Per btm. 12" & 14")

1шт.

25

X1893

BRACE - share, 1" rd. x 15" (Per btm. 16")

1шт.

26

X1895

BRACE - moldboard, 5/8" rd. x 16" (Per btm. 16")

1шт.

27

T61676

SLAT - no. 5 (Per btm. 16")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

28

T60948

SLAT - no. 6 (Per btm. 16")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

29

12D

SHARE

- 12" S.C. (Per btm. 12")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

29

S12D

SHARE

- 12" solid steel (Per btm. 12")

1шт.

30

14D

SHARE

- 14" S.C. (Per btm. 14")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

30

S14D

SHARE

- 14" solid steel (Per btm. 14")

1шт.

31

16D

SHARE

- 16" S.C. (Per btm. 16")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

31

S16D

SHARE

- 16" solid steel (Per btm. 16")

1шт.

32

T19822

BOLT

- plow, 7/16" x 2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

33

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut

1шт.
