(CASE) - MOUNTED MOLDBOARD PLOW BOTTOMS (1/64-12/79)
/

(066) - TSX SLAT BOTTOM R.H., PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

Запчасти Case IH CASE (066) - TSX SLAT BOTTOM R.H., PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

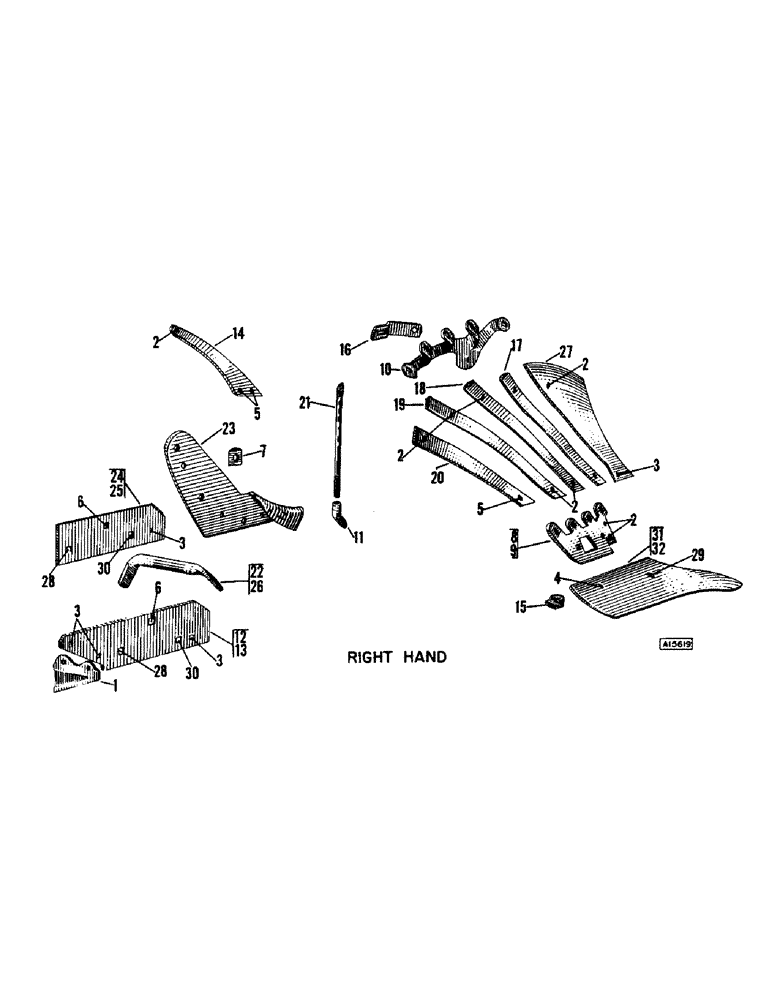

Схема запчастей Case IH CASE - (066) - TSX SLAT BOTTOM R.H., PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

№

Артикул

Название

Примечание

Количество

20

T61636

SLAT - #5 R.H., 14" (Per btm. 14")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

21

X468

BRACE - moldboard, 5/8" rd. x 14"

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

22

X469

BRACE - share, 1" rd. x 13" (Per btm. 14")

1шт.

23

X1887

FROG

1шт.

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.F. hex

1шт.

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- 1/2" x 3-1/2" N.F. hex

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

2шт.

24

T26984

LANDSIDE

- short, 4" x 1/2" x 14-1/4" (Per btm. 14")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 14")

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 w/lockwasher and nut (Per btm. 14")

1шт.

25

T61700

LANDSIDE - short, 4" x 1/2" x 16-1/4" (Per btm. 16")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 16")

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 w/lockwasher and nut (Per btm. 16")

1шт.

26

X1893

BRACE - share, 1" rd. x 15" (Per btm. 16")

1шт.

27

T60868

SLAT - #1 R.H.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

28

T19822

BOLT

- plow, 7/16" x 2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

29

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut

1шт.

30

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

31

14D

SHARE

- 14" S.C. (Per btm. 14")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

31

S14D

SHARE

- 14" solid steel (Per btm. 14")

1шт.

31

S14DH

SHARE - 14" solid steel, hard faced (Per btm. 14")

1шт.

32

16D

SHARE

- 16" S.C. (Per btm. 16")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

Z1694

BOLT

- plow, 1/2" x 1-1/2" P#3 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

32

S16DH

SHARE - 16" solid steel, hard faced (Per btm. 16")

1шт.

32

S16D

SHARE

- 16" solid steel (Per btm. 16")

1шт.

Выбрано товаров: 39
