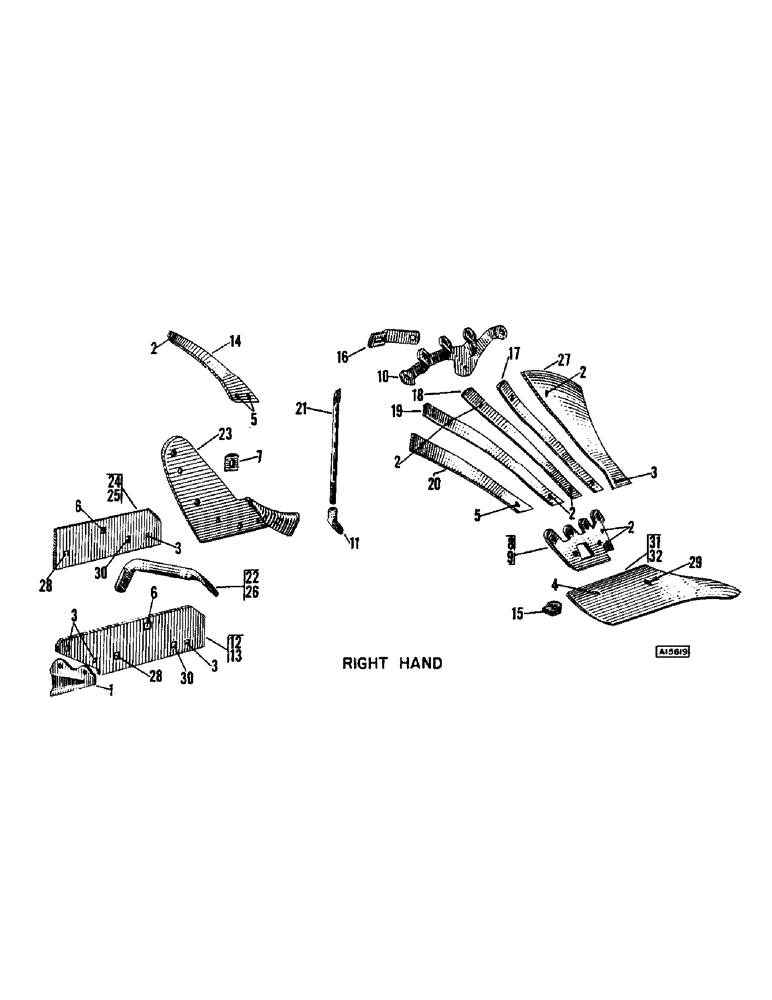

Запчасти Case IH CASE (064) - TSX SLAT BOTTOM R.H., PER BOTTOM 14 INCH AND 16 INCH

1

T1575

BLADE

HEEL - long landside, R.H.

1шт.

2

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

3

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

1535

WASHER - spacer

1шт.

8

1859

U-BOLT

SPLICE PLATE (Per btm. 14")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

9

1860

CLAMP

SPLICE PLATE (Per btm. 16")

1шт.

10

1865A

BRACKET - slat, R.H.

1шт.

11

P25

NUT - round brace

1шт.

12

T60935

LANDSIDE - long, 4" x 1/2" x 20" (Per btm. 16")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" SAE grade 5 P#3 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 16")

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

13

W7010S

LANDSIDE - long, 4" x 1/2" x 20" (Per btm. 14")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 14")

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

14

T60877

SLAT - #5 R.H., 16" (Per btm. 16")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

15

W8304S

CLAMP - share

1шт.

16

W9958S

BRACE - moldboard, 1-1/2" x 3/8" x 9-3/8"

1шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

17

X463

SLAT - #2 R.H.

1шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

18

T60251

SLAT - #3 R.H.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

19

T60252

SLAT - #4 R.H.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.
