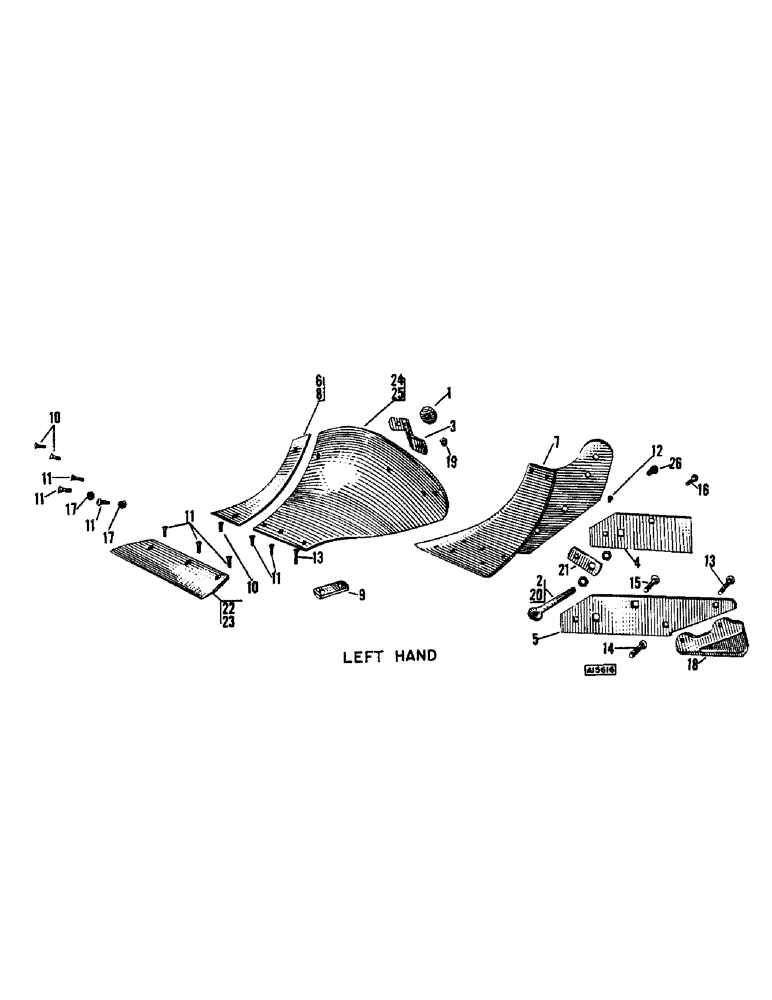

Запчасти Case IH CASE (056) - TEX EAGLE BOTTOM LEFT HAND, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

20

W10608S

BRACE - moldboard, short, 5/8" rd. x 9-1/2"

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex jam

1шт.

21

W10609S

CLIP - short round moldboard brace, 1-1/2" x 1/2" x 4"

1шт.

22

E14L

SHARE - 14" L.H., curved steel, w/bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

22

EE14L

SHARE

- 14 L.H., curved steel less bolts (Per btm. 14")

1шт.

22

EE14HL

SHARE - 14" L.H., curved steel, hard faced less bolts (Per btm. 14")

1шт.

23

E16L

SHARE

- 16" L.H., curved steel w/bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

23

EE16L

SHARE

- 16", L.H., curved steel, less bolts (Per btm. 16")

1шт.

23

EE16HL

SHARE - 16" L.H., curved steel, har faced less bolts (Per btm. 16")

1шт.

24

EX14L

MOLDBOARD - 14" L.H. (Per btm. 14")

1шт.

T19468

BOLT - 3/8" x 1" P#3 SAE grade 5, plow w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

195-2032

WASHER - 1" x 7/16" x 16 ga. (Per btm. 14")

4шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga. (Per btm. 14")

2шт.

25

EX16L

MOLDBOARD

- 16" L.H. (Per btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

195-2032

WASHER - 1" x 7/16" x 16 ga. (Per btm. 16")

4шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga. (Per btm. 16")

2шт.

26

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.
