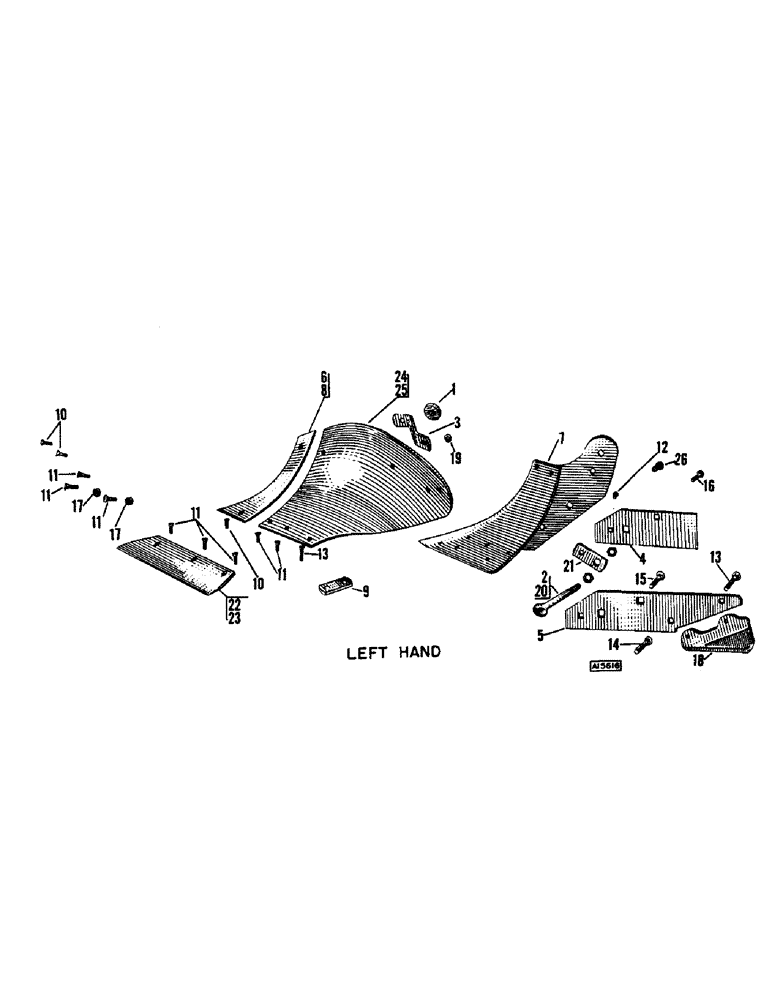

Запчасти Case IH CASE (054) - TEX EAGLE BOTTOM LEFT HAND, PER BOTTOM 14 INCH AND 16 INCH

1

T1149

SPACER - moldboard brace and beam

1шт.

2

T11757

BRACE - moldboard, long

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex jam

1шт.

3

T11762

BRACE - moldboard, L.H., 1-1/2" x 3/8" x 12-5/8"

1шт.

4

T26992

LANDSIDE

- medium, L.H., 4" x 3/8" x 12"

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T62014

LANDSIDE

- long, L.H., 4" x 1/2" x 20" with W1711 heel

1шт.

T27361

BOLT

- 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

92-6

LOCK WASHER,3/8"

2шт.

6

T60601

SHIN PIECE - 14" L.H. moldboard (Per btm. 14")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

7

T11768

FROG - L.H.

1шт.

11-832

BOLT (MACHINE)

BOLT - 1/2" x 2" N.C., R.H. sq. neck

2шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

8

T60600

SHIN PIECE - 16" L.H., moldboard (Per btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

9

T19441

STRAP

- moldboard and share, 1-1/2" x 3/8" x 4-1/16"

1шт.

10

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

11

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

13

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

14

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

17

H1521S

BUSHING

SPACER - moldboard extension bolt, 3/8" pipe x 5/16"

2шт.

18

W1711

HEEL

- long, L.H. landside

1шт.

19

W10579S

WASHER - serrated, 1-1/8" x 1/2" x 7 ga.

1шт.
