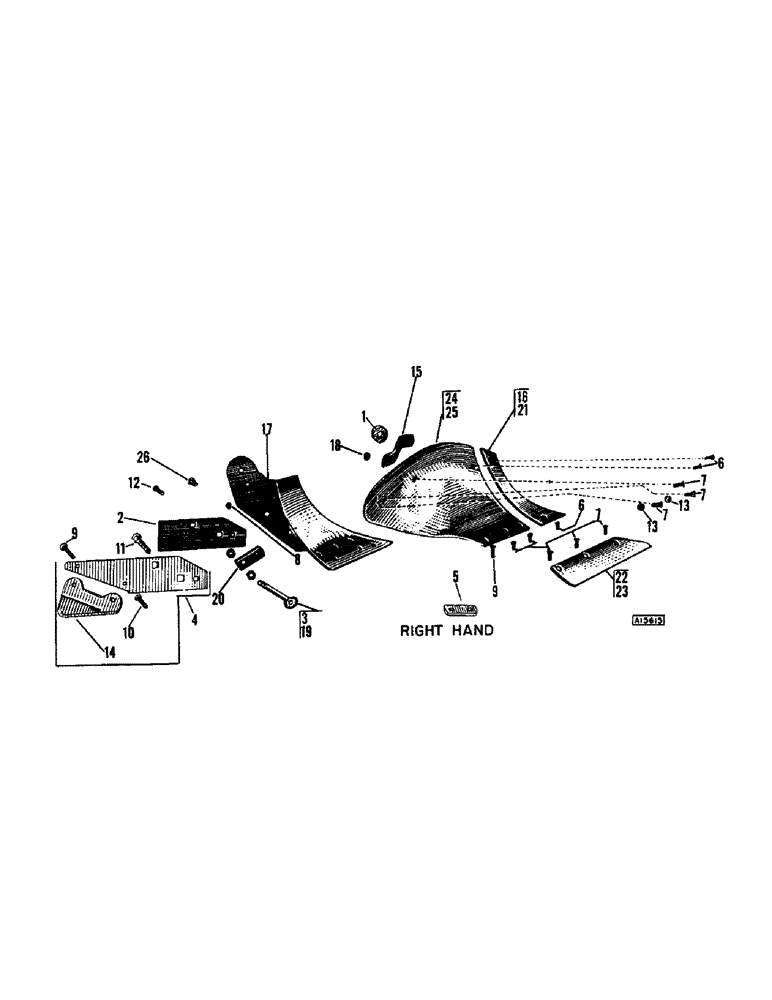

Запчасти Case IH CASE (052) - TEX EAGLE BOTTOM RIGHT HAND, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

21

T60818

SHIN

PIECE - 16" R.H. moldboard (Per btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

22

E14

SHARE

- 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

22

EE14

SHARE

- 14", curved steel less bolts (Per btm 14")

1шт.

22

EE14H

SHARE - 14" curved steel, hard facedless bolts (Per btm. 14")

1шт.

22

EE14K

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

23

E16

SHARE

- 16" curved steel, with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

23

EE16

SHARE

- 16" curved steel less bolts (Per btm. 16")

1шт.

23

EE16H

SHARE - 16", curved steel, hard faced, less bolts (Per btm. 16")

1шт.

24

EX14

MOLDBOARD

- 14" (Per btm. 14")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut (Per btm. 14")

3шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

195-2032

WASHER - 1" x 7/16" x 16 ga. (Per btm. 14")

4шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga. (Per btm. 14")

2шт.

25

EX16

MOLDBOARD

- 16" (Per btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

195-2032

WASHER - 1" x 7/16" x 16 ga. (Per btm. 16")

4шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga. (Per btm. 16")

2шт.

26

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.
