(048) - KXM BOTTOM, PER BOTTOM 12 INCH AND 14 INCH

Запчасти Case IH CASE (048) - KXM BOTTOM, PER BOTTOM 12 INCH AND 14 INCH

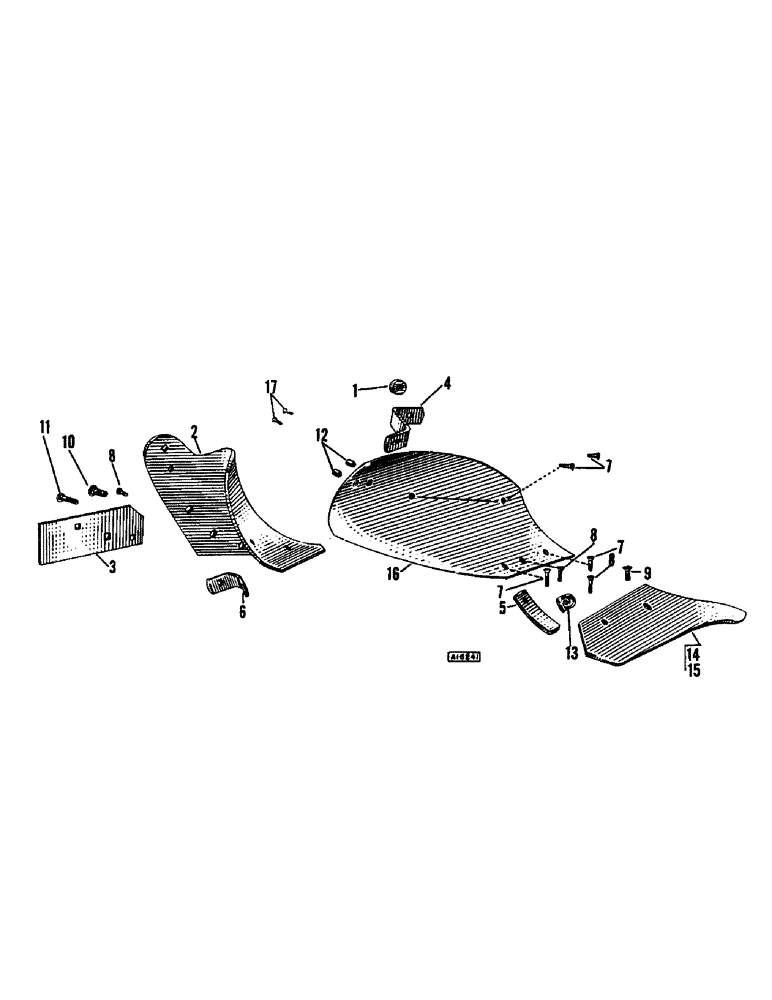

Схема запчастей Case IH CASE - (048) - KXM BOTTOM, PER BOTTOM 12 INCH AND 14 INCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T1149

SPACER - moldboard brace & standard

1шт.

2

T14362

FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

3

T60724

LANDSIDE - 4" x 1/2" x 12"

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T14364

BRACE - moldboard

1шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

1шт.

5

T14365

STRAP - share clamp

1шт.

6

T14366

BRACE - frog and standard

1шт.

7

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

8

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

9

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

10

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

11

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

12

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

13

W8304S

CLAMP - share

1шт.

14

K12D

SHARE - 12" S.C. (Per btm. 12")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

14

SK12D

SHARE - 12" solid steel (Per btm. 12")

1шт.

15

K14D

SHARE - 14" S.C. (Hardware same as ref. no. 14) (Per btm. 14")

1шт.

15

SK14D

SHARE - 14" solid steel (Per btm. 14")

1шт.

16

T61097

"K" MOLDBOARD

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade SAE w/rep. hd. & N.C. hex nut

4шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

17

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. head and N.C. hex nut

2шт.
