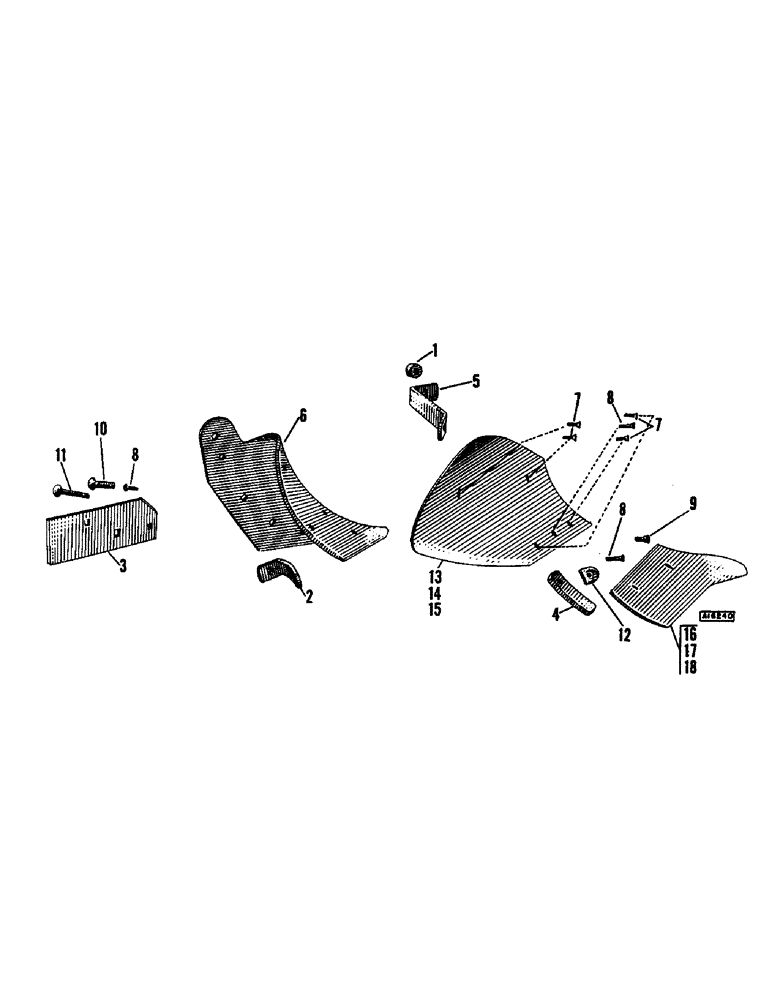

Запчасти Case IH CASE (046) - CXM BOTTOMS, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

1

T1149

SPACER - moldboard brace and standard

1шт.

2

T14366

BRACE - frog and standard, 1-1/2" x 3/8" x 6-1/4"

1шт.

3

T26994

LANDSIDE - 4" x 1/2" x 12"

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T14368

STRAP - share clamp, 1-1/2" x 1/2" x 5-1/4"

1шт.

5

T14369

BRACE - moldboard, 1-1/2" x 3/8" x 15"

1шт.

6

T14370

FROG

1шт.

11-832

BOLT (MACHINE)

BOLT - 1/2" x 2" N.C. R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C. R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

7

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

8

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

3шт.

9

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

10

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

11

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

12

W8304S

CLAMP - share

1шт.

13

CX12

MOLDBOARD (Per btm. 12")

1шт.

95-6

WASHER,3/8"

- 1" x 7/16" x #14 ga. (Per btm. 12")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

4шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

14

CX14

MOLDBOARD (Hardware same as ref. no. 13) (Per btm. 14")

1шт.

15

CX16

MOLDBOARD (Hardware same as ref. no. 13) (Per btm. 16")

1шт.

16

12D

SHARE

- 12" S.C. (Per btm. 12")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

16

S12D

SHARE

- 12" solid steel (Per btm. 12")

1шт.

17

14D

SHARE

- 14" S.C. (Hardware same as ref. 16) (Per btm. 14")

1шт.

17

S14D

SHARE

- 14" solid steel (Per btm. 14")

1шт.

18

16D

SHARE

- 16" S.C. (Hardware same as ref. no. 16) (Per btm. 16")

1шт.

18

S16D

SHARE

- 16" solid steel (Per btm. 16")

1шт.
