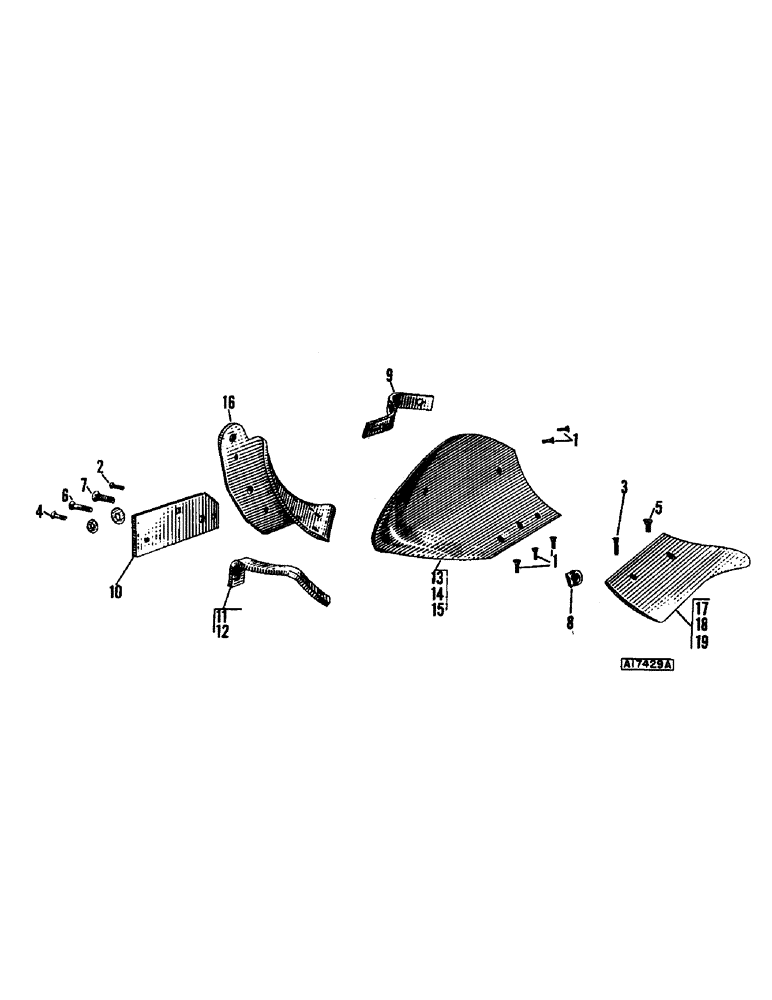

Запчасти Case IH CASE (042) - CXQD BOTTOMS, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

5шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

3

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

8

W8304S

CLAMP - share

1шт.

9

X428

BRACE - moldboard

1шт.

10

T26996

LANDSIDE

- whort, 4" x 1/2" x 12"

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19478

BOLT

- plow, 7/16" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

11

T22671

BRACE - share (Per btm. 12" & 14")

1шт.

12

X1886

BRACE - share (Per btm. 16")

1шт.

13

CX12

MOLDBOARD (Per btm. 12")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

5шт.

95-6

WASHER,3/8"

- 1" x 7/16" x #14 ga. (Per btm. 12")

1шт.

14

CX14

MOLDBOARD (Per btm. 14")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

5шт.

95-6

WASHER,3/8"

- 1" x 7/16" x #14 ga. (Per btm. 14")

1шт.

15

CX16

MOLDBOARD (Per btm. 16")

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

5шт.

95-6

WASHER,3/8"

- 1" x 7/16" x #14 ga. (Per btm. 16")

1шт.

16

XA1899

"C" FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

17

12D

SHARE

- 12" soft center (Per btm. 12")

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T19480

BOLT

- plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.
