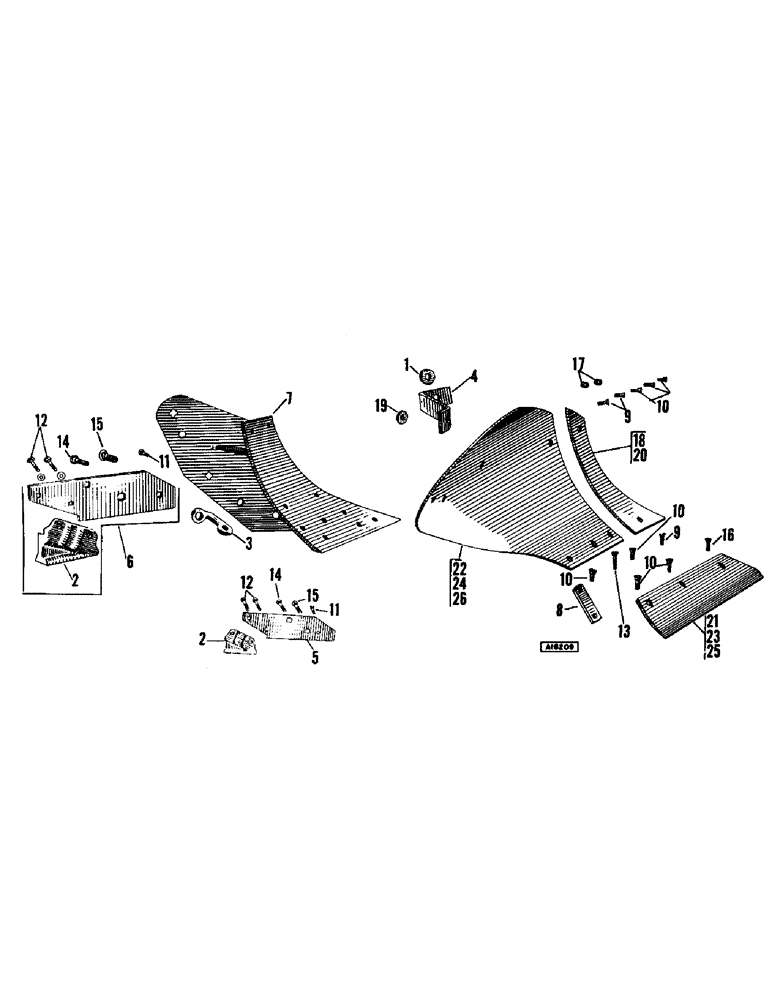

Запчасти Case IH CASE (040) - EXHM HEAVY EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED

21

EE12A

SHARE

- 12" curved steel, less bolts (Per btm. 12")

1шт.

22

EX12

MOLDBOARD

(Per btm. 12")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 12")

2шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

5шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

23

E14A

SHARE - 14" curved steel, with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 & N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14A

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

23

E14FM

SHARE

- 14" curved steel, forged tip with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14FM

SHARE

- 14" curved steel forged tip less bolts (Per btm. 14")

1шт.

23

EE14AH

SHARE

- 14" curved steel, hard faced less bolts (Per btm. 14")

1шт.

23

EE14KA

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

24

EX14

MOLDBOARD

(Per btm. 14")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 14")

2шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

5шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

25

E16A

SHARE

- 16" curved steel, with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 & N.C. hex jam nut (Per btm. 16")

1шт.

25

EE16A

SHARE

- 16", curved steel, less bolts (Per btm. 16")

1шт.

25

E16FM

SHARE

- 16", curved steel, forged tip, with bolts (Hardware same as ref. no. 23, E14FM share) (Per btm. 16")

1шт.

25

EE16FM

SHARE

- 16", curved steel, forged tip, less bolts (Per btm. 16")

1шт.

25

EE16AH

SHARE

- 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

26

EX16

MOLDBOARD

(Per btm. 16")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 16")

2шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

5шт.

T19473

PLOW BOLT

BOLT - plow, 5/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.
