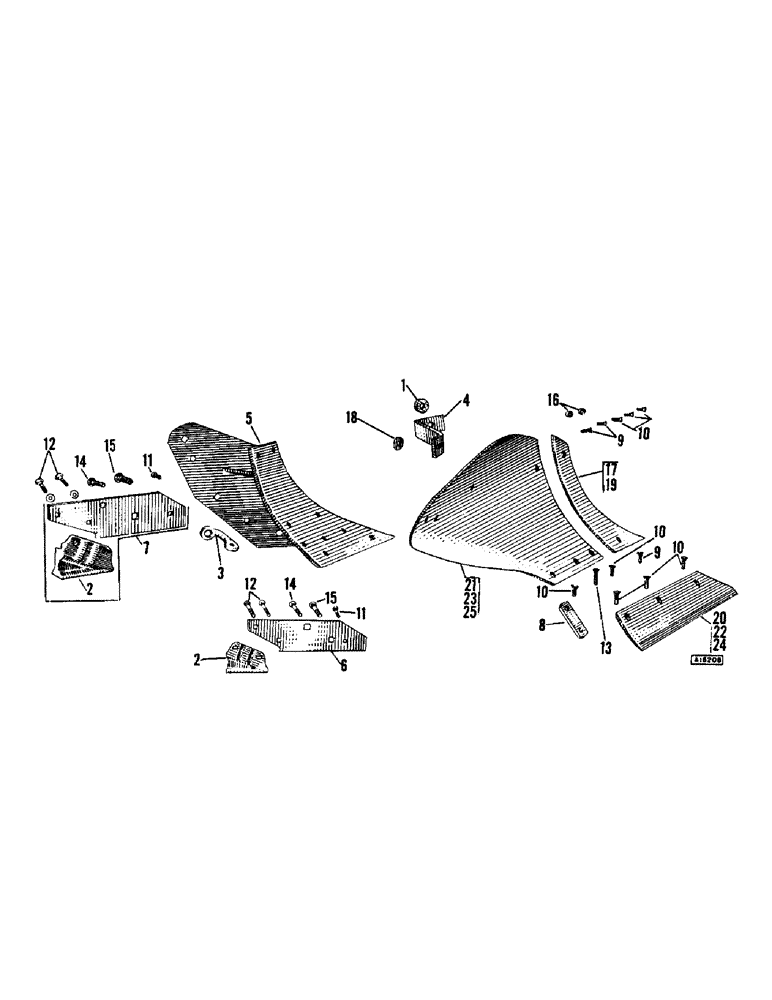

Запчасти Case IH CASE (036) - EXM EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED

19

T60818

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

20

E12

SHARE

- 12" curved steel with bolts (Per btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

2шт.

20

EE12

SHARE

- 12" curved steel, less bolts (Per btm. 12")

1шт.

21

EX12

MOLDBOARD

(Per btm. 12")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 12")

2шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

3шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

22

E14

SHARE

- 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

22

EE14

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

22

EE14H

SHARE - 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

22

EE14K

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

23

EX14

MOLDBOARD

(Per btm. 14")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 14")

2шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

24

E16

SHARE

- 16" curved steel with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

24

EE16

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

24

EE16H

SHARE - 16" curved steel, hard faced less bolts (Per btm. 16")

1шт.

25

EX16

MOLDBOARD

(Per btm. 16")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 16")

2шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.
