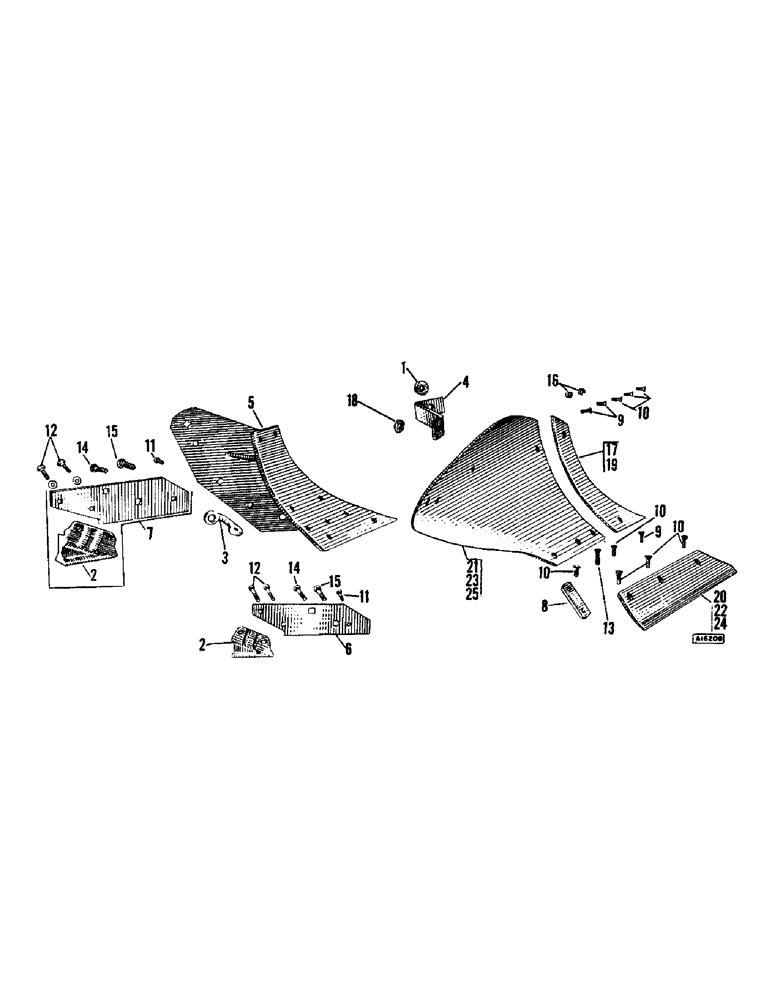

Запчасти Case IH CASE (034) - EXM EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

1

T1149

SPACER - moldboard brace and standard

1шт.

2

T1575

BLADE

HEEL CASTING

1шт.

3

T14231

BRACE - moldboard

1шт.

4

T14233

BRACE - moldboard

1шт.

5

T14236

FROG

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C. R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

6

T27018

LANDSIDE

- 4" x 3/8" x 10-1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19471

PLOW BOLT

BOLT - 3/8" x 1-1/4" P#3 plow, SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

7

T62016

LANDSIDE

- 4" x 3/8" x 13-1/2" w/heel

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

8

T19441

STRAP

- share and moldboard (Per btm. 14" & 16")

1шт.

9

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

10

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

7шт.

10

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14" & 16")

8шт.

11

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

12

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

13

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

17

T60822

SHIN

PIECE - moldboard (Per btm. 12" & 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

2шт.

18

W10579S

WASHER - serrated

1шт.
