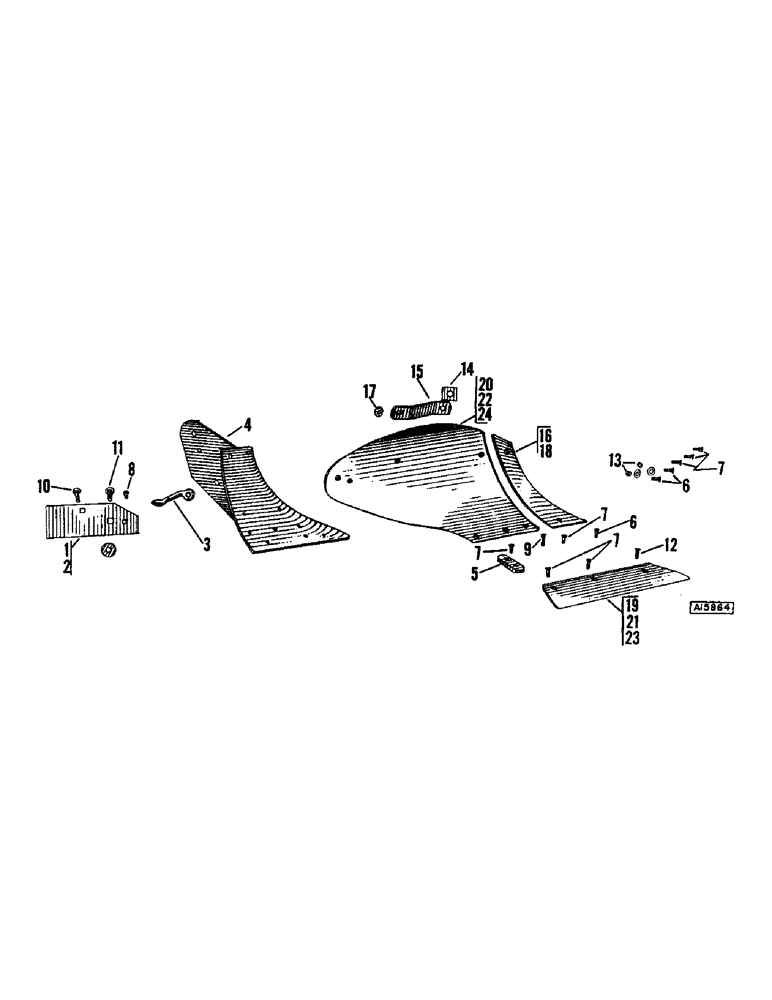

Запчасти Case IH CASE (030) - EXH EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

1

T60742

LANDSIDE - short, 4" x 3/8" x 9-1/4"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

2

T26991

LANDSIDE

- medium, 4" x 3/8" x 11" (Hardware same as ref. 1)

1шт.

3

T11932

BRACE - moldboard, 5/8" rd. x 9-1/2"

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex jam

2шт.

4

T15869

FROG - EXH

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

5

T19441

STRAP

- moldboard (Per btm. 14" & 16")

1шт.

6

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

3шт.

7

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

7шт.

7

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14" & 16")

8шт.

8

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

9

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

10

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

11

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

12

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 grade 5 & N.C. hex jam nut

1шт.

13

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

14

W2800

BLOCK - beam filler

1шт.

15

W10539S

BRACE - moldboard

1шт.

16

T60822

SHIN

PIECE - moldboard and share (Per btm. 12" & 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

2шт.

17

W10579S

WASHER - serrated

1шт.

18

T60818

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 6 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

19

E12A

SHARE

- 12" curved steel regular heavy with bolts (Per btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 & N.C. hex jam nut (Per btm. 12")

1шт.

19

EE12A

SHARE

- 12" curved steel, less bolts (Per btm. 12")

1шт.
