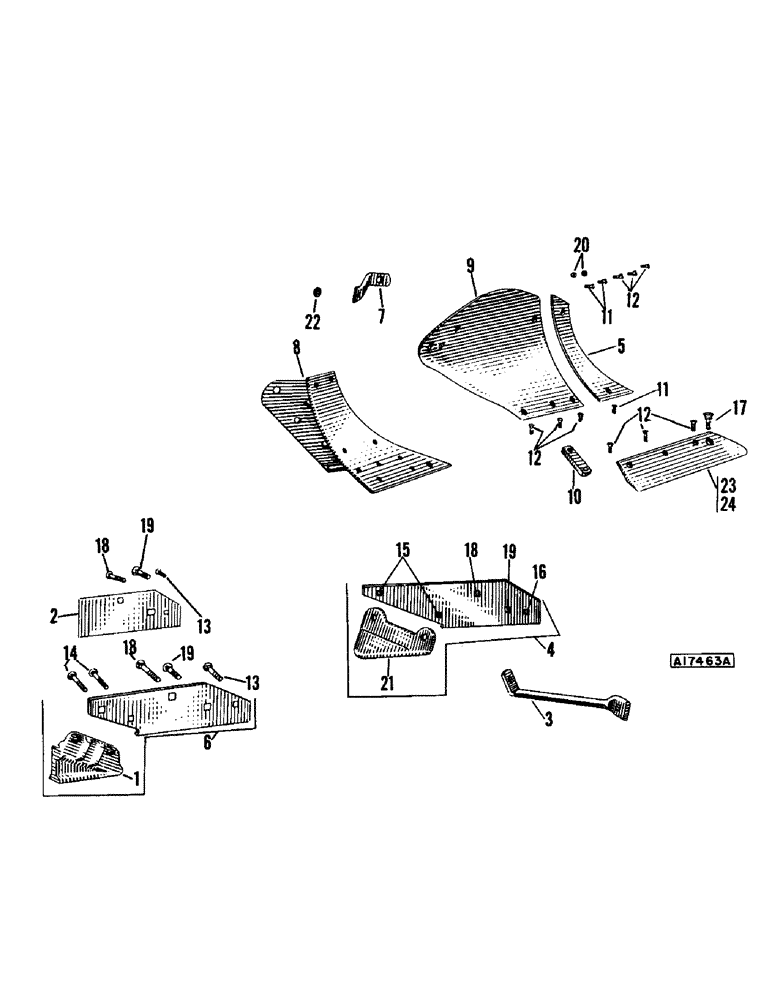

Запчасти Case IH CASE (028) - EXT 14 INCH AND 16 INCH EAGLE BOTTOMS, PER BOTTOM 14 INCH AND 16 INCH

10

T19441

STRAP

- moldboard and share

1шт.

11

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

3шт.

12

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

9шт.

13

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

15

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

16

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

17

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE gr. 5 w/N.C. hex jam nut

1шт.

18

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

19

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

20

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

21

WA887

HEEL

PLATE - heel

1шт.

22

W10579S

WASHER - serrated, 1-1/8" x 1/2" x #7 ga. on T19469

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14FM

SHARE

- 14" curved steel, forged tip, less bolts (Per btm. 14")

1шт.

23

E14A

SHARE - 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14A

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

23

EE14AH

SHARE

- 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

23

EE14KA

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

24

E16A

SHARE

- 16" curved steel, with bolts (Hardware same as ref. no. 23, E14A share) (Per btm. 16")

1шт.

24

EE16A

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

24

E16FM

SHARE

- 16" curved steel, forged tip, w/bolts (Hardware same as ref. no. 23, E14FM share) (Per btm. 16")

1шт.

24

EE16FM

SHARE

- 16" curved steel, forged tip, less bolts (Per btm. 16")

1шт.

24

EE16AH

SHARE

- 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.
