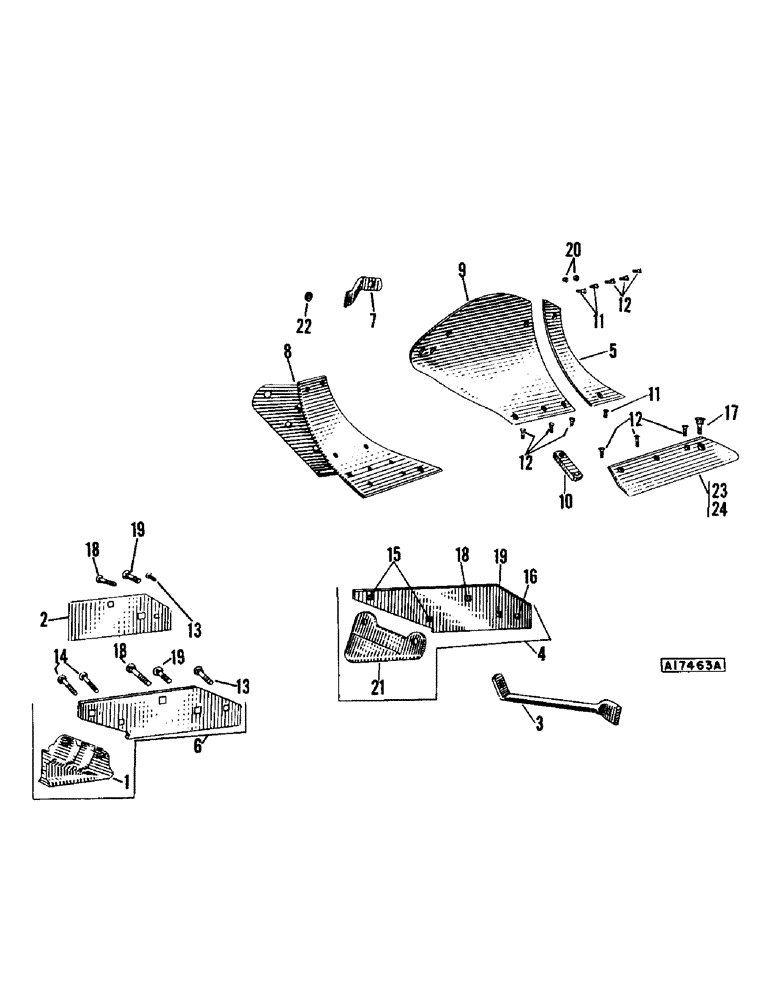

Запчасти Case IH CASE (026) - EXT 14 INCH AND 16 INCH EAGLE BOTTOMS, PER BOTTOM

1

T1575

BLADE

HEEL CASTING - front bottom only

1шт.

2

T26991

LANDSIDE

- medium, 4" x 3/8" x 11"

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

T11757

BRACE - landside to moldboard, 3/4" rd. x 12", rear bottom only

1шт.

4

T62013

LANDSIDE

- long, 4" x 1/2" x 20", rear bottom only w/heel

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut

2шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. (On T19484)

1шт.

5

T60557

SHIN

- moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

6

T62015

LANDSIDE

- 4" x 1/2" x 14" w/heel

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

2шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga. (On T19472)

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) (On T19483) 1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. (On T19484)

1шт.

7

T18018

BRACE

- moldboard

1шт.

8

T26961

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

9

T61199

MOLDBOARD

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut for landside brace & share strap - rear bottom only

1шт.
