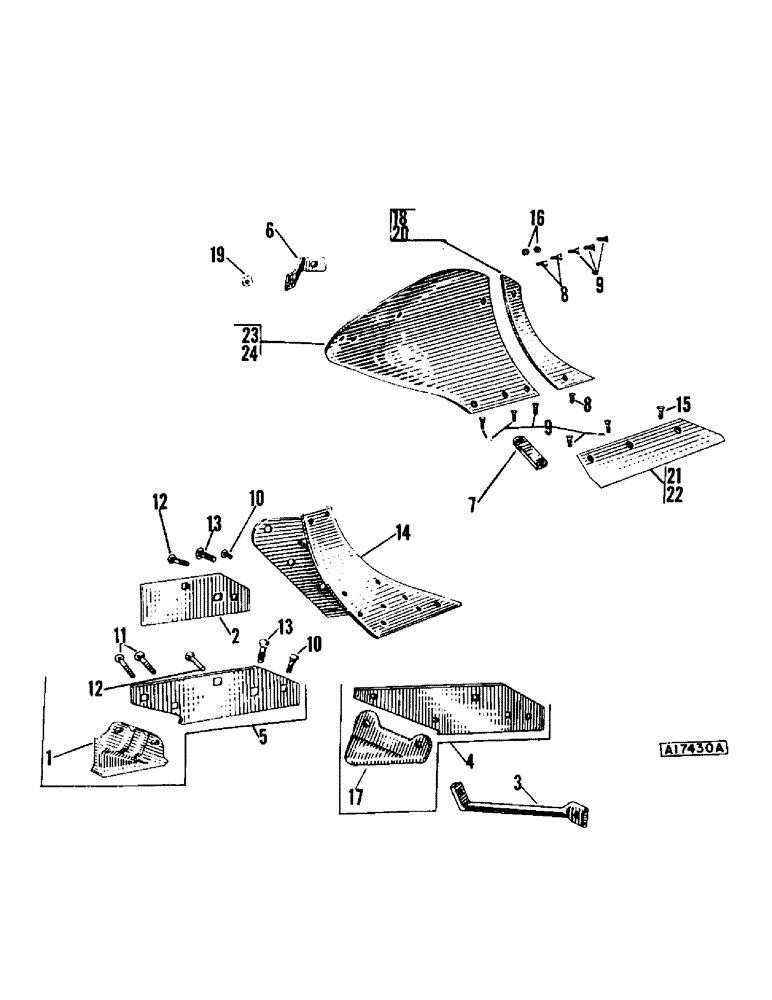

Запчасти Case IH CASE (024) - EXR 14 INCH AND 16 INCH EAGLE BOTTOMS, PER BOTTOM 14 INCH AND 16 INCH

14

T26961

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

15

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

H1521S

BUSHING

SPACER - moldboard extension 3/8" pipe x 5/16"

2шт.

17

WA887

HEEL

PLATE

1шт.

18

T60822

SHIN

PIECE - moldboard (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

19

W10579S

WASHER - serrated, 1-1/8" x 1/2" x 7 ga. on T19469

1шт.

20

T60818

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut (Per btm. 16")

2шт.

21

E14A

SHARE - 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

21

EE14A

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

21

EE14AH

SHARE

- 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

21

EE14FM

SHARE

- 14" curved steel, forged tip, less bolts (Per btm. 14")

1шт.

21

E14FM

SHARE

- 14" curved steel, forged tip, w/bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

21

EE14KA

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

22

E16A

SHARE

- 16" curved steel with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

22

EE16A

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

22

E16FM

SHARE

- 16" curved steel, forged tip, with bolts (Hardware same as ref. no. 21) (Per btm. 16")

1шт.

22

EE16FM

SHARE

- 16" curved steel, forged tip, less bolts (Per btm. 16")

1шт.

22

EE16AH

SHARE

- 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

23

EX14

MOLDBOARD

(Per btm. 14")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. and N.C. hex nut (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

4шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 14")

1шт.

24

EX16

MOLDBOARD

(Per btm. 16")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

4шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 16")

1шт.
