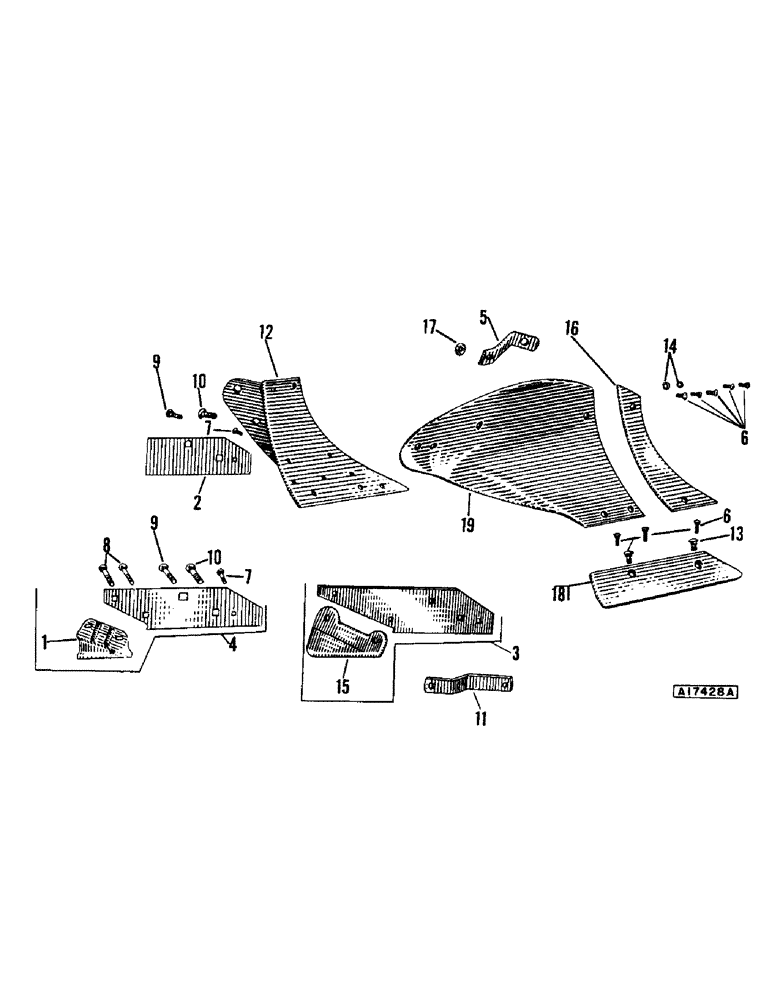

Запчасти Case IH CASE (020) - EXR 12 INCH EAGLE BOTTOM, PER BOTTOM, CONTINUED

14

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

15

WA887

HEEL

PLATE - use w/T62013 extra long landside - rear bottom only

1шт.

16

T60822

SHIN

PIECE - moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

17

W10579S

WASHER - serrated, 1-1/8" x 1/2" x 7 ga. on T19469

1шт.

18

E12A

SHARE

- 12" curved steel with bolts

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut

1шт.

18

EE12A

SHARE

- 12" curved steel, less bolts

1шт.

19

EX12

MOLDBOARD

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

6шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.
