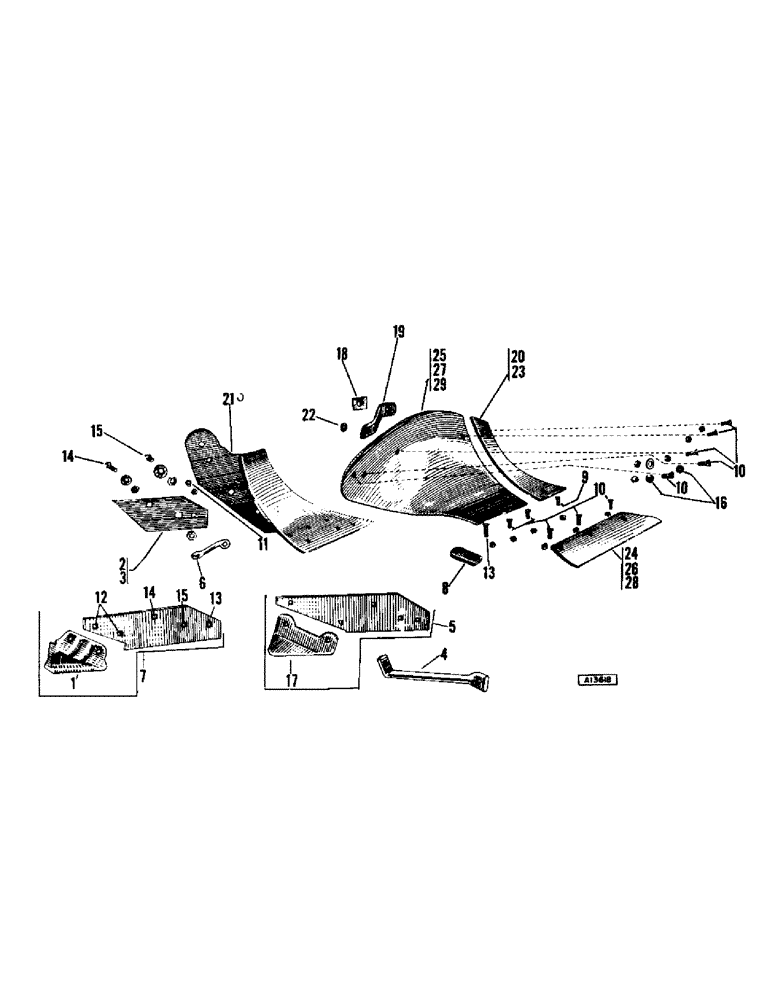

Запчасти Case IH CASE (012) - EX EAGLE BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH, CONTINUED

14

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut

1шт.

16

H1521S

BUSHING

SPACER - moldboard extension, 3/8" pipe x 5/16"

2шт.

17

WA887

HEEL

PLATE

1шт.

18

W2800

BLOCK - beam filler

1шт.

19

W10539S

BRACE - moldboard

1шт.

20

T60822

SHIN

PIECE - moldboard (Per btm. 12" & 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

2шт.

21

W10550S

FROG

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" N.C., R.H. sq. neck

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" N.C., R.H. sq. neck

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

22

W10579S

WASHER - serrated

1шт.

23

T60818

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- 3/8" x 1-1/8" P#3 plow, SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

24

E12

SHARE

- 12" curved steel with bolt (Per btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

2шт.

24

EE12

SHARE

- 12" curved steel less bolts (Per btm. 12")

1шт.

25

EX12

MOLDBOARD

(Per btm. 12")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga (Per btm. 12")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3, SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

5шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3, SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 12")

1шт.

26

E14

SHARE

- 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3, SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

26

EE14

SHARE

- 14" curved steel less bolts (Per btm. 14")

1шт.

26

EE14H

SHARE - 14" curved steel hard faced less bolts (Per btm. 14")

1шт.

26

EE14K

SHARE

- 14" curved steel clipped less bolts (Per btm. 14")

1шт.

27

EX14

MOLDBOARD

(Per btm. 14")

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga. (Per btm. 14")

1шт.

T19468

BOLT - plow, 3/8" x 1" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

5шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

28

E16

SHARE

- 16" curved steel with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

28

EE16

SHARE

- 16" curved steel less bolts (Per btm. 16")

1шт.

28

EE16H

SHARE - 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

29

EX16

MOLDBOARD

(Hardware same as ref. 27) (Per btm. 16")

1шт.
