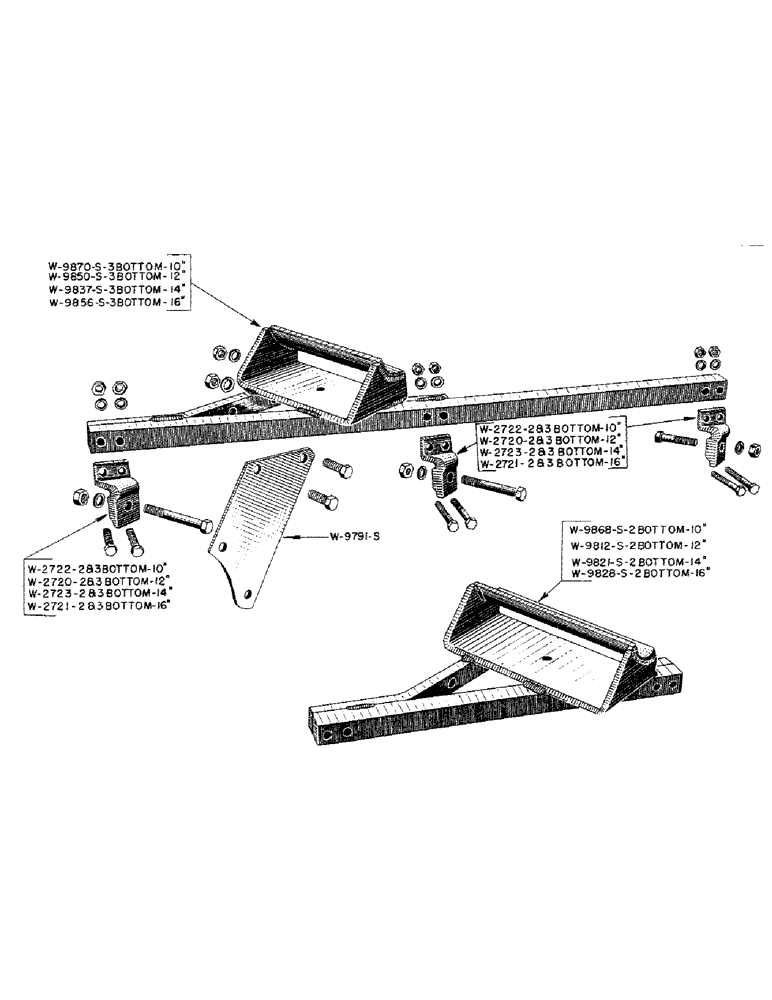

Запчасти Case IH BER-SERIES (11) - REAR STABILIZER BAR GUIDE AND BRACKETS,10 IN.(2B, 3B), 12 IN.(2B, 3B), 14 IN.(2B, 3B),16 IN.(2B, 3B)

W2720

BRACKET - stiffener bar (12", 2B) (YR. 52-)

2шт.

W2720

BRACKET - stiffener bar (12", 3B) (YR. 52-)

3шт.

1/2" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (12", 3B)

1шт.

1/2" X 3-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 12" (2B, 3B)

4шт.

5/8" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 12" (2B, 3B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (12", 2B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (12", 3B)

2шт.

W2721

BRACKET - stiffener bar (16", 2B) (YR. 52-)

2шт.

W2721

BRACKET - stiffener bar (16", 3B) (YR. 52-)

3шт.

1/2" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (16", 3B)

2шт.

1/2" X 3-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 16" (2B, 3B)

4шт.

5/8" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 16" (2B, 3B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (16", 2B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (16", 3B)

2шт.

W2722

BRACKET - stiffener bar (10", 2B) (YR. 52-)

2шт.

W2722

BRACKET - stiffener bar (10", 3B) (YR. 52-)

3шт.

1/2" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (10", 3B)

2шт.

1/2" X 3-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 10" (2B, 3B)

4шт.

5/8" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 10" (2B, 3B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (10", 2B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (10", 3B)

2шт.

W2723

BRACKET - stiffener bar (14", 2B) (YR. 52-)

2шт.

W2723

BRACKET - stiffener bar (14", 3B) (YR. 52-)

3шт.

1/2" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (14", 3B)

2шт.

1/2" X 3-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 14" (2B, 3B)

4шт.

5/8" X 2-3/4" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT 14" (2B, 3B

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (14", 2B)

1шт.

5/8" X 4-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT (14", 3B)

2шт.

W9791S

SUPPORT - stabilizer guide (YR. 52-)

1шт.

1/2" X 3-1/2" HEX HD. CAP SCREW W/LOCKWASHER & HEX NUT

2шт.

W9812S

GUIDE - bar, rear stabilizer (12", 2B) (YR. 52-)

1шт.

W9821S

GUIDE - bar, rear stabilizer (14", 2B) (YR. 52-)

1шт.

W9828S

GUIDE - bar, rear stabilizer (16", 2B) (YR. 52-)

1шт.

W9837S

GUIDE - bar, rear stabilizer (14", 3B) (YR. 52-)

1шт.

W9850S

GUIDE - bar, rear stabilizer (12", 3B) (YR. 52-)

1шт.

W9856S

GUIDE - bar, rear stabilizer (16", 3B) (YR. 52-)

1шт.

W9868S

GUIDE - bar, rear stabilizer (10", 2B) (YR. 52-)

1шт.

W9870S

GUIDE - bar, rear stabilizer (10", 3B) (YR. 52-)

1шт.
