(BER-SERIES) - CASE MOUNTED PLOWS (1/52-12/57)
/

(10) - FRAME ASSEMBLY, THREE BOTTOM

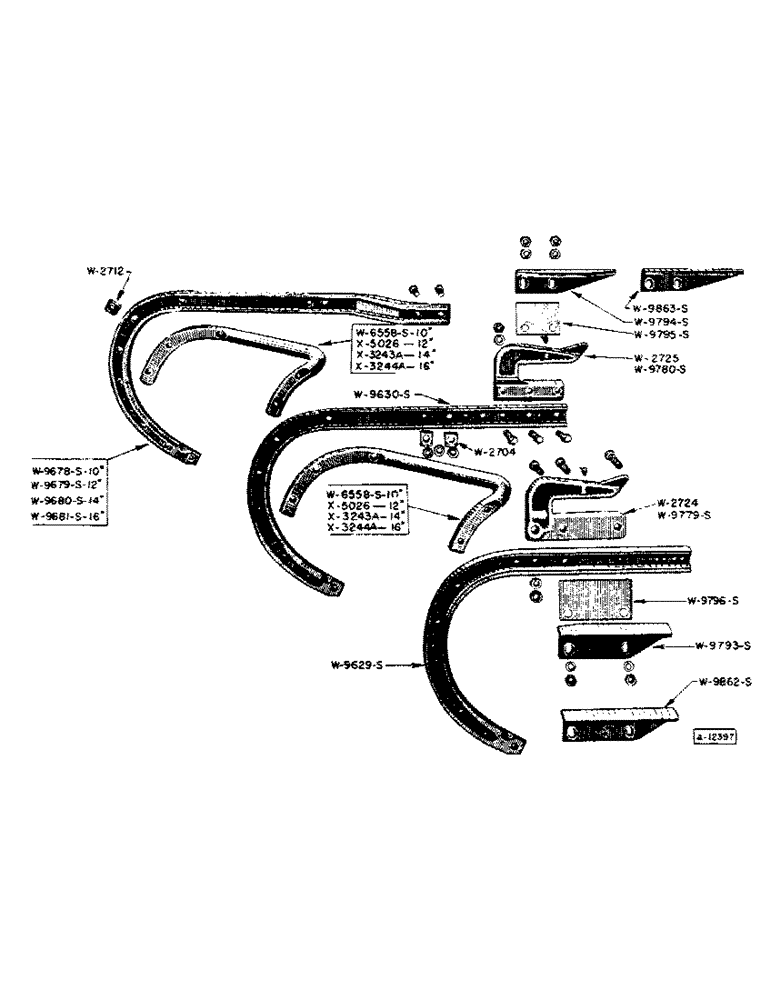

Запчасти Case IH BER-SERIES (10) - FRAME ASSEMBLY, THREE BOTTOM

№

Артикул

Название

Примечание

Количество

W2704

BLOCK - filler, beam (YR. 52-)

2шт.

W2712

BLOCK - filler, beam (Rear wheel bracket) (YR. 52-)

1шт.

W2724

STABILIZER - R.H. draft bar (Interchangeable with W9779S) (YR. 52-)

1шт.

1/4" X 67-1/2 DEGREES LINCOLN FITTING NO. 5350

1шт.

3/4" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

W2725

STABILIZER - L.H. draft bar (Interchangeable with W9780S) (YR. 52-)

1шт.

1/4" X 67-1/2 DEGREES LINCOLN FITTING NO. 5350

1шт.

3/4" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

W6558S

BRACE - rear, beam (For 10" bottom plow) (YR. 52-)

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

5/8" X 5" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9629S

BEAM NO. 1 - (YR. 52-)

1шт.

5/8" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9630S

BEAM NO. 2 - (YR. 52-)

1шт.

W9678S

BEAM - offset (10" bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9679S

BEAM - offset (12" bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9680S

BEAM - offset (14" bottom plow) (YR. 52-)

1шт.

3/4" x 4-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9681S

BEAM - offset (16" bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9779S

STABILIZER - R.H. draft bar (Interchangeable with W2724) (YR. 52-)

1шт.

1/4" X 67-1/2 DEGREES LINCOLN FITTING NO. 5350

1шт.

3/4" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9780S

STABILIZER - L.H. draft bar (Interchangeable with W2725) (YR. 52-)

1шт.

1/4" X 67-1/2 DEGREES LINCOLN FITTING NO. 5350

1шт.

3/4" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W9793S

RAIL - R.H. guide (For 12", 14", 16" bottom plow) (YR. 52-)

1шт.

W9794S

RAIL - L.H. guide (For 12", 14", 16" bottom plow) (YR. 52-)

1шт.

W9795S

SHIM - L.H. guide rail (YR. 52-)

1шт.

W9796S

SHIM - R.H. guide rail (YR. 52-)

1шт.

W9862S

RAIL - R.H. guide (For 10" bottom plow) (YR. 52-)

1шт.

W9863S

RAIL - L.H. guide (For 10" bottom plow) (YR. 52-)

1шт.

X3243A

BRACE - rear, beam (For 14" bottom plow) (YR. 52-)

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

5/8" X 5" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

X3244A

BRACE - rear, beam (For 16" bottom plow) (YR. 52-)

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

5/8" X 5" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

X5026

BRACE - rear, beam (For 12" bottom plow) (YR. 52-)

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

5/8" X 5" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

Выбрано товаров: 43
