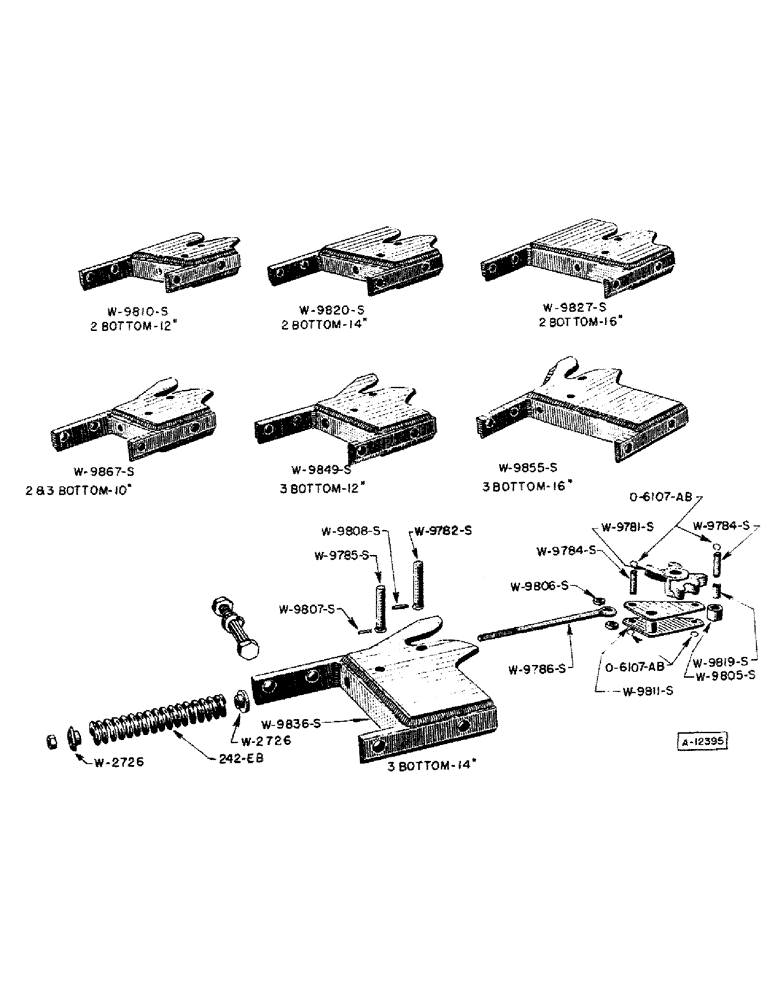

Запчасти Case IH BER-SERIES (08) - FRONT BEAM SPACER WITH SPRING RELEASE COUPLER

W2726

BLOCK - spacer, trip spring (YR. 52-)

2шт.

O6107AB

X

SNAP RING - lock arm pin (YR. 52-)

4шт.

W9781S

CAM - spring release latch (YR. 52-)

1шт.

W9782S

PIN - latch cam (3/4" rd. x 3-3/8") (YR. 52-)

1шт.

W9784S

PIN - grooved, lock arm (1/2" rd. x 1-13/16") (YR. 52-)

2шт.

W9785S

PIN - lock arm (5/8" rd. x 3-1/4") (YR. 52-)

1шт.

W9786S

EYEBOLT - spring (1/2" rd. x 15") (YR. 52-)

1шт.

1/2" N.C. HEX NUT

1шт.

W9805S

ROLLER - lock arm (1-1/4" rd. x 1") (YR. 52-)

1шт.

W9806S

SPACER - spring eyebolt (1" O.D. x 7/32" wall x 1/4") (YR. 52-)

2шт.

W9807S

X

PIN - roll, lock arm pin (3/16" x 1-1/8") (YR. 52-)

1шт.

W9808S

PIN - roll, latch cam pin (1/4" x 1-1/4") (YR. 52-)

1шт.

W9810S

SPACER - front beam (For 12" - 2 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9811S

LOCK ARM - (YR. 52-)

1шт.

W9819S

BEARING - lock arm (YR. 52-)

1шт.

W9820S

SPACER - front beam (For 14" - 2 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9827S

SPACER - front beam (For 16" - 2 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9836S

SPACER - front beam (For 14" - 3 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9849S

SPACER - front beam (For 12" - 3 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9855S

SPACER - front beam (For 16" - 3 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

W9867S

SPACER - front beam (For 10" - 2 and 3 bottom plow) (YR. 52-)

1шт.

3/4" X 4-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

4шт.

242EB

SPRING - trip (1-5/8" O.D. x 9-3/16" long, 17-1/2 coils compression) (YR. 52-)

1шт.
