(BER-SERIES) - CASE MOUNTED PLOWS (1/52-12/57)
/

(06) - DRAFT BAR, MAST AND STABILIZER BAR, THREE BOTTOM PLOW, 10, 12, 14 AND 16 INCHES

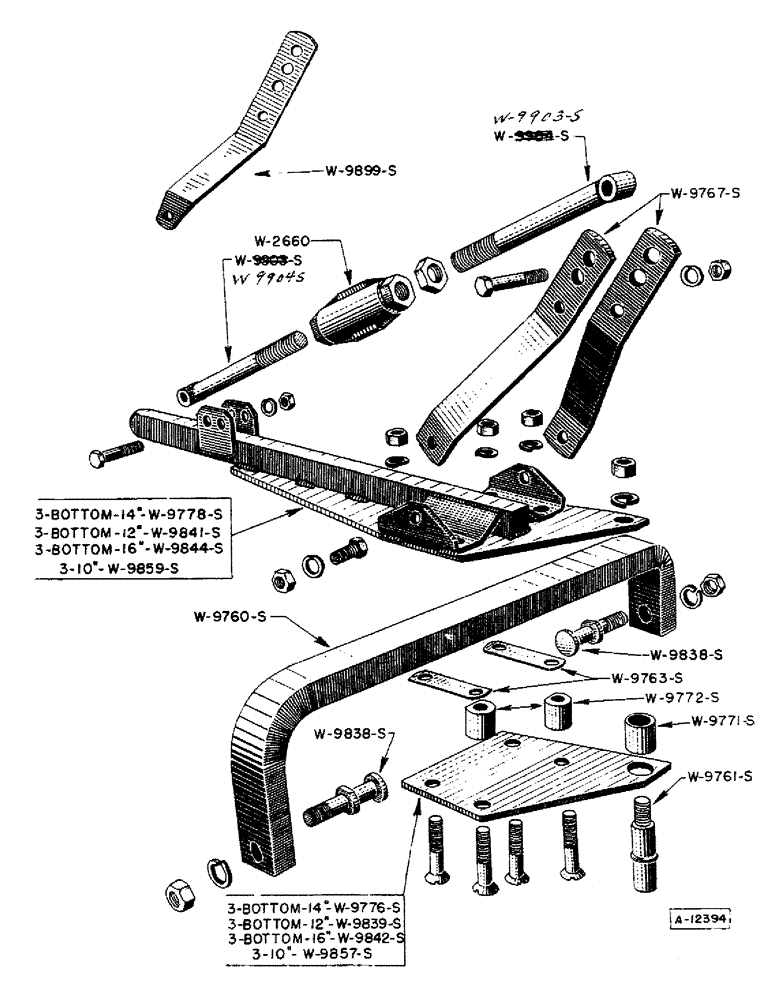

Запчасти Case IH BER-SERIES (06) - DRAFT BAR, MAST AND STABILIZER BAR, THREE BOTTOM PLOW, 10, 12, 14 AND 16 INCHES

№

Артикул

Название

Примечание

Количество

W2660

TURNBUCKLE - mast rod (YR. 52-)

1шт.

W9760S

DRAFT BAR - (YR. 52-)

1шт.

W9761S

PIN - pivot (1-1/2" rd. x 5") (YR. 52-)

1шт.

7/8" LOCKWASHER AND HEX NUT

1шт.

W9763S

SPACER - clamp bolt (1-1/2" x 5-3/8" x 16 ga.) (YR. 52-)

2шт.

W9767S

ARM - mast (2" x 1/2" x 15-1/2") (12", 14", 16") (YR. 52-)

2шт.

5/8" X 1-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (12", 14", 16")

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (12", 14", 16")

1шт.

W9771S

SPACER - pivot pin (1-3/4" O.D. x 1-5/16" long) (YR. 52-)

1шт.

W9772S

SPACER - clamp plate (1-1/2" O.D. x 1-7/32" long) (YR. 52-)

2шт.

W9776S

PLATE - lower clamp (10" x 3/8" x 10-1/2") (14") (YR. 52-)

1шт.

3/4" X 3-1/2" FLAT HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT (14")

4шт.

W9778S

BAR - stabilizer (14") (YR. 52-)

1шт.

5/8" X 3" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (14")

1шт.

W9838S

PIN - draft bar hitch (1-1/2" rd. x 4-7/8") (YR. 52-)

2шт.

7/8" LOCKWASHER AND HEX NUT

2шт.

W9839S

PLATE - lower clamp (10" x 3/8" x 9-1/2") (12") (YR. 52-)

1шт.

3/4" X 3-1/2" FLAT HEAD CAP SCREW WITH LOCKWASHER AND NUT (12")

4шт.

W9841S

BAR - stabilizer (12") (YR. 52-)

1шт.

5/8" X 3" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (12")

1шт.

W9842S

PLATE - lower clamp (16") (YR. 52-)

1шт.

3/4" X 3-1/2" FLAT HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT (16")

4шт.

W9844S

BAR - stabilizer (16") (YR. 52-)

1шт.

5/8" X 3" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (16")

1шт.

W9857S

PLATE - lower clamp (10" x 3/8" x 8-1/2") (10") (YR. 52-)

1шт.

3/4" X 3-1/2" FLAT HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT (10")

4шт.

W9859S

BAR - stabilizer (10") (Yr. 52-)

1шт.

5/8" X 3" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (10")

1шт.

W9899S

ARM - mast (2" x 1/2" x 16-1/4") (10") (YR. 52-)

2шт.

5/8" X 1-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (10")

2шт.

5/8" X 3-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND NUT (10")

1шт.

W9903S

BRACE ROD - mast, R.H. thread (YR. 52-)

1шт.

W9904S

BRACE ROD - mast, L.H. thread (YR. 52-)

1шт.

1-1/8" HEX JAM NUT

1шт.

Выбрано товаров: 34
