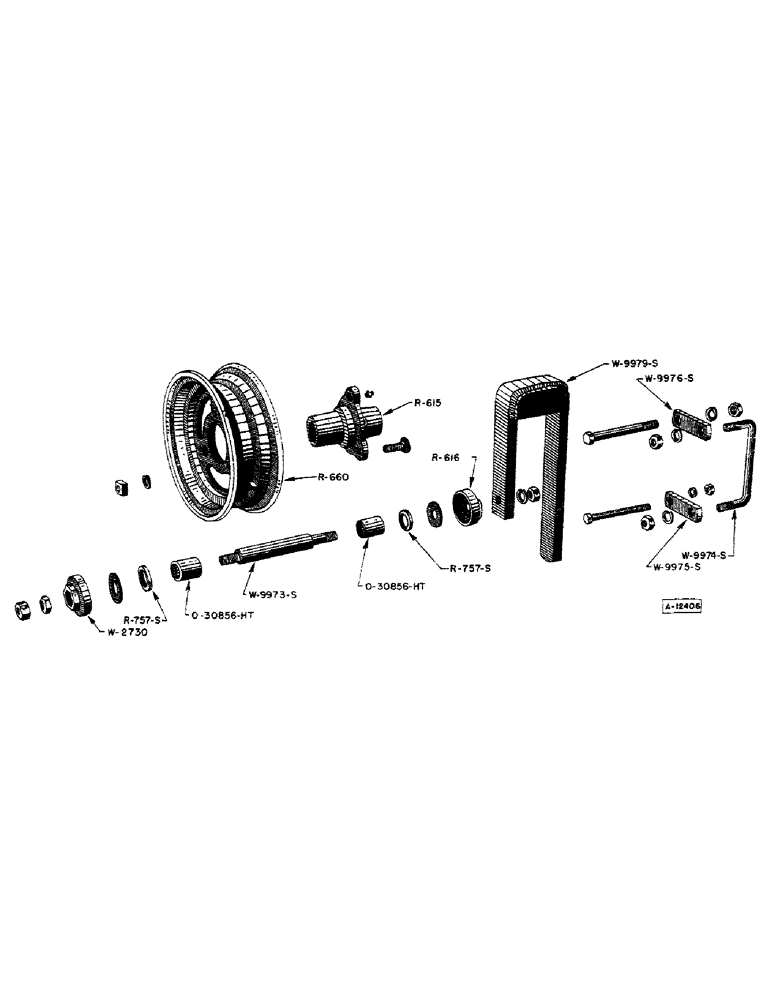

Запчасти Case IH BER-SERIES (19) - LAND GAUGE WHEEL

R615

BOX - wheel (YR. 52-)

1шт.

1/8" STRAIGHT LINCOLN FITTING NO. 5000

1шт.

1/2" X 2" CARRIAGE BOLT W/LOCKWASHER AND N.C. HEX NUT

3шт.

R616

CAP - hub, inner (YR. 52-)

1шт.

R660

WHEEL - (YR. 52-)

1шт.

W2730

CAP - hub, outer (YR. 52-)

1шт.

O30856HT

BEARING - hub (Torrington BH 1624) (YR. 52-)

2шт.

R757S

RETAINER - grease (YR. 52-)

2шт.

W9973S

SPINDLE - axle (YR. 52-)

1шт.

2" X 13/16" X NO. 9 GA. WROT WASHER

2шт.

1" HEX NUT

1шт.

1" HEX JAM NUT

1шт.

W9974S

BOLT - clamp (5/8" rd. x 12-1/4") (YR. 52-)

1шт.

5/8" LOCKWASHER AND HEX NUT

2шт.

W9975S

PLATE - clamp, lower (YR. 52-)

1шт.

1/2" X 5-1/2" HEX HEAD BOLT W/LOCKWASHER AND HEX NUT

1шт.

W9976S

PLATE - clamp, upper (YR. 52-)

1шт.

5/8" X 6" HEX HEAD BOLT W/LOCKWASHER AND HEX NUT

1шт.

W9979S

ARCH - axle (YR. 52-)

1шт.
