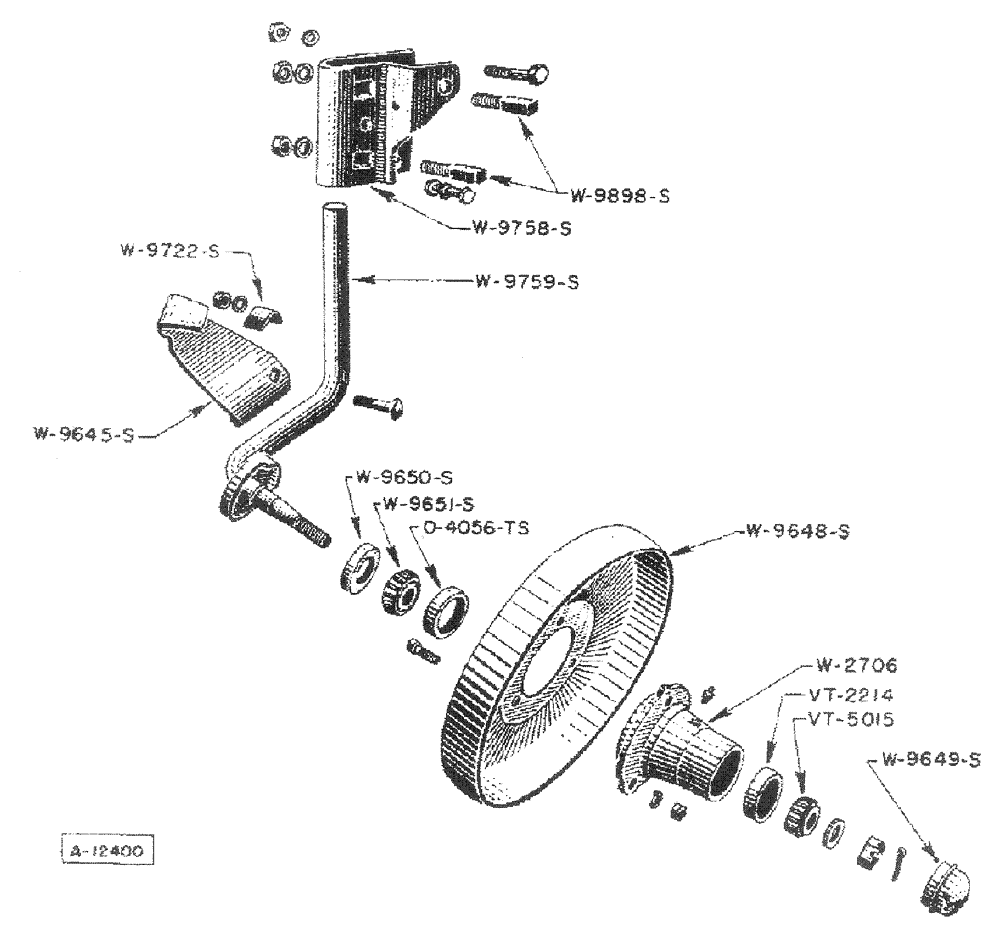

Запчасти Case IH BER-SERIES (18[1]) - REAR FURROW WHEEL AND BRACKET

W2706

HUB - rear furrow wheel (YR. 52-)

1шт.

1/8" STRAIGHT LINCOLN FITTING NO. 5000

1шт.

O4056TS

CUP

- inner bearing (Timken no. 15250) (YR. 52-)

1шт.

W9645S

SCRAPER - wheel (YR. 52-)

1шт.

1/2" X 2-1/4" CARRIAGE BOLT WITH LOCKWASHER AND HEX NUT

1шт.

W9648S

WHEEL

- rear furrow (YR. 52-)

1шт.

7/16" X 1-1/4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

3шт.

W9649S

CAP

- hub (YR. 52-)

1шт.

W9650S

OIL SEAL

SEAL - Garlock Klozure (YR. 52-)

1шт.

W9651S

CUP ASSY.

CONE - inner bearing (Timken no. 15101) (YR. 52-)

1шт.

W9722S

SPACER - wheel scraper (YR. 52-)

1шт.

W9758S

BRACKET - rear furrow wheel (YR. 52-)

1шт.

1/2" X 4" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

5/8" X 5" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

1шт.

1-7/8" X 9/16" X 10 GA. WROT WASHER

1шт.

W9759S

AXLE - rear furrow (YR. 52-)

1шт.

1-1/4" X 13/16" X 14" GA. WROT WASHER

1шт.

3/4" HEX SLOTTED NUT

1шт.

3/16" X 1" COTTER PIN

1шт.

W9898S

BOLT - wedge, rear axle bracket (YR. 52-)

2шт.

5/8" LOCKWASHER AND HEX NUT

2шт.

VT2214

X

CUP - outer bearing (Timken no. 09195) (YR. 52-)

1шт.

VT5015

X

CONE - outer bearing (Timken no. 09067) (YR. 52-)

1шт.
