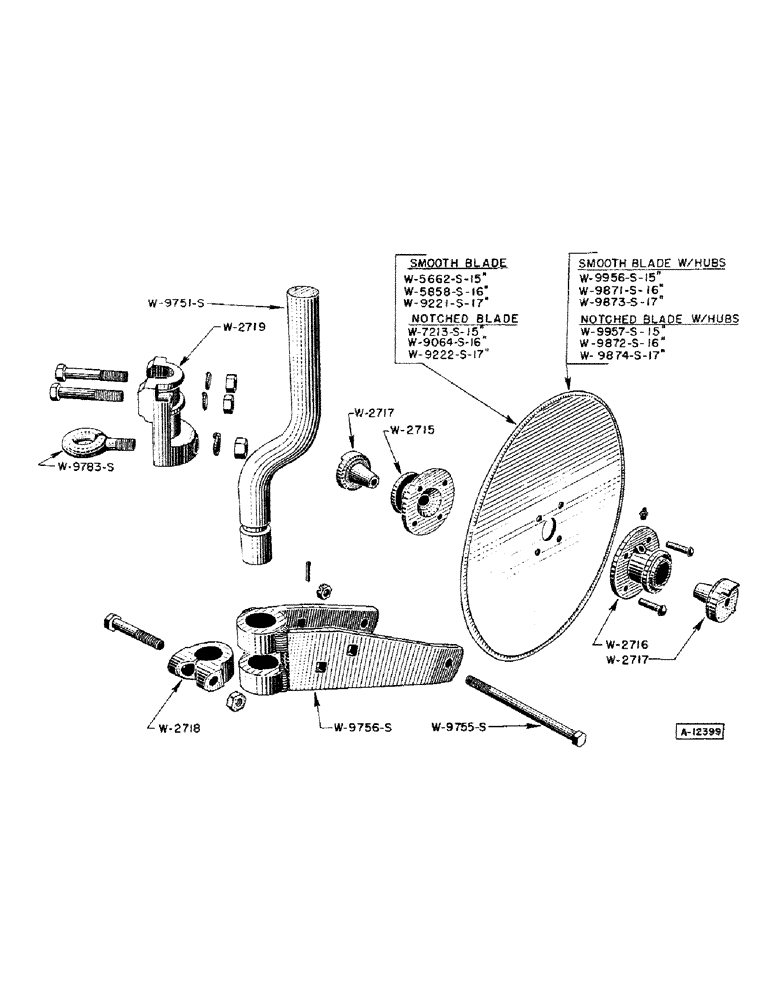

Запчасти Case IH BER-SERIES (17) - ROLLING COULTER

W2715

HUB - coulter (YR. 52-)

1шт.

W2716

HUB - coulter (Drilled and tapped for Lincoln fitting) (YR. 52-)

1шт.

3/8" X 1-1/2" ROUND HEAD RIVET

4шт.

1/8" STRAIGHT LINCOLN FITTING NO. 5000

1шт.

W2717

CONE - bearing (YR. 52-)

2шт.

W2718

CLAMP - stop (YR. 52-)

1шт.

1/2" X 3" HEX HEAD CAP SCREW WITH HEX NUT

1шт.

W2719

CLAMP - coulter (YR. 52-)

1шт.

5/8" X 3-1/2" HEX HEAD CAP SCREW WITH LOCKWASHER AND HEX NUT

2шт.

W5662S

BLADE - smooth - 15" (YR. 52-)

1шт.

W5858S

BLADE

- smooth - 16" (YR. 52-)

1шт.

W7213S

BLADE - notched - 15" (YR. 52-)

1шт.

W9064S

BLADE - notched - 16" (YR. 52-)

1шт.

W9221S

BLADE - smooth - 17" (YR. 52-)

1шт.

W9222S

BLADE

- notched - 17" (YR. 52-)

1шт.

W9751S

STANDARD - coulter (1-1/4" rd x 14-1/4") (YR. 52-)

1шт.

W9755S

CAP SCREW - drilled (1/2" x 7" hex head with slotted hex nut) (YR. 52-)

1шт.

1/8" X 1" COTTER PIN

1шт.

W9756S

YOKE - coulter (YR. 52-)

1шт.

W9783S

EYEBOLT - coulter clamp (YR. 52-)

1шт.

3/4" LOCKWASHER AND HEX NUT

1шт.

W9871S

BLADE - smooth, 16" cpt. with hubs (YR. 52-)

1шт.

W9872S

BLADE - notched, 16" cpt. with hubs (YR. 52-)

1шт.

W9873S

BLADE - smooth. 17" cpt. with hubs (YR. 52-)

1шт.

W9874S

X

BLADE - notched, 17" cpt. with hubs (YR. 52-)

1шт.

W9956S

BLADE - smooth, 15" cpt. with hubs (YR. 52-)

1шт.

W9957S

BLADE - notched 15" cpt. with hubs (YR. 52-)

1шт.
